Flat Suction Cups SGON

Suction area (LxW) from 4 x 2 mm to 30 x 10 mm
Go directly to the products

Oval design allows positioning on narrow or elongated workpieces with a small contact surface

High suction force with small dimensions

Support surfaces prevent deformation of thin copper films or CCLs

Material NBR-ESD protects against uncontrolled electrostatic discharge

Design

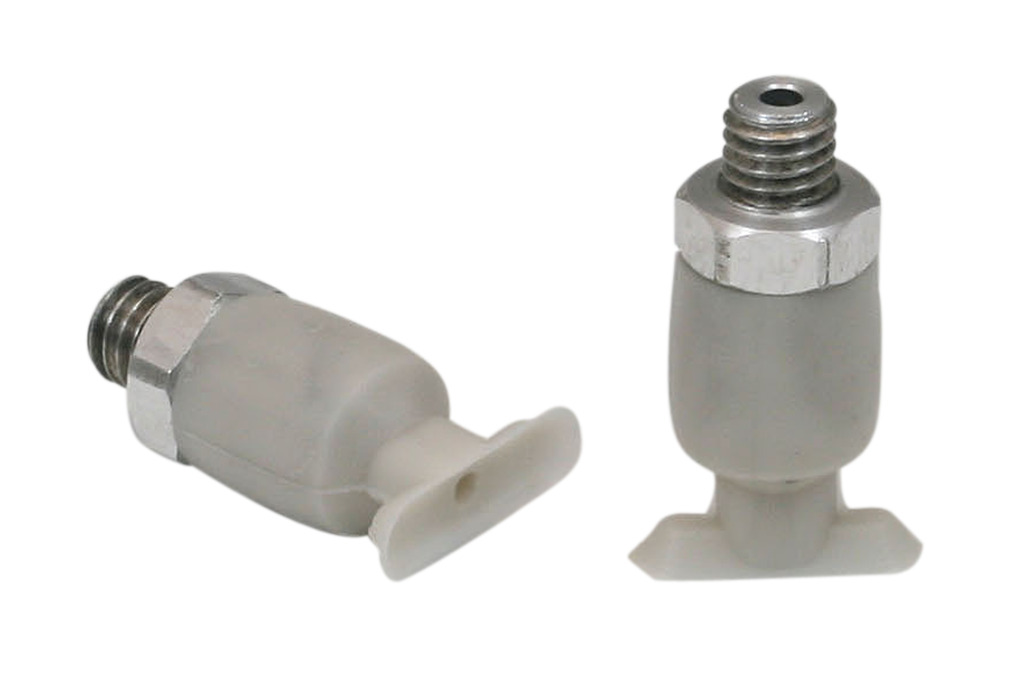

  • Robust, wear-resistant suction cup SGON (3) with single sealing lip, consisting of suction cup SGO (2) and connection nipple (1)
  • Nipple plugged into cup
  • With each nipple family, the replacement cups and nipples can be combined as desired
Technical Data
  • Dimensions: 4 x 2 to 30 x 10 mm
  • Material: HT1, NBR, NBR-CO, NBR-ESD, SI
  • Conductive, dissipative and mark-free variants

Filter results

Dimension (LxW)
Suction cup material
Thread G1
Product family
Height H
Spring stroke Z
Industry sector

1 - 10 from 53 results

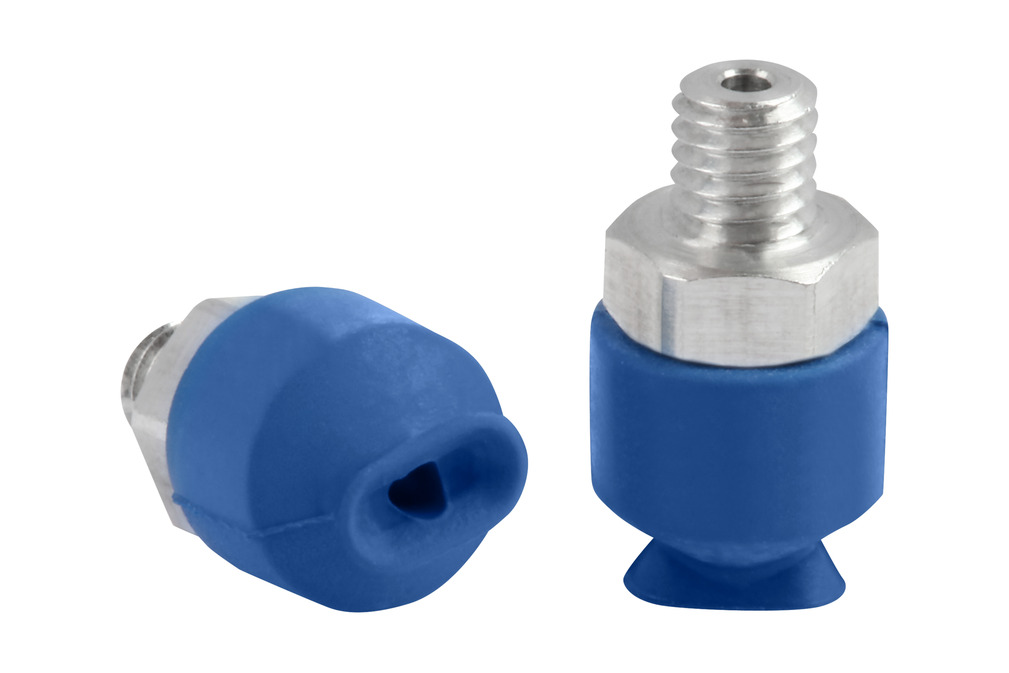

SGON 4x2 HT1-60 M3-AG

Part no.: 10.01.05.00404

Flat suction cup (oval) for long and also curved workpieces

Dimension (LxW)4x2
Suction cup materialHigh temperature material HT1
Material hardness [Shore A]60 (Shore A)
Material property non-marking
Nipple materialAluminum
ConnectionM3-M
SGON 4x2 NBR-55 M3-AG

Part no.: 10.01.01.00564

Flat suction cup (oval) for long and also curved workpieces

Dimension (LxW)4x2
Suction cup materialNitrile rubber NBR
Material hardness [Shore A]55 (Shore A)
Nipple materialAluminum
ConnectionM3-M
SGON 4x2 NBR-ESD-55 M3-AG

Part no.: 10.01.05.00938

Flat suction cup (oval) for long and also curved workpieces

Dimension (LxW)4x2
Suction cup materialNitrile rubber NBR-ESD
Material hardness [Shore A]55 (Shore A)
Nipple materialAluminum
ConnectionM3-M
SGON 7x3.5 HT1-60 M3-AG

Part no.: 10.01.05.00405

Flat suction cup (oval) for long and also curved workpieces

Dimension (LxW)7x3.5
Suction cup materialHigh temperature material HT1
Material hardness [Shore A]60 (Shore A)
Material property non-marking
Nipple materialAluminum
ConnectionM3-M
SGON 7x3.5 NBR-55 M3-AG

Part no.: 10.01.01.00489

Flat suction cup (oval) for long and also curved workpieces

Dimension (LxW)7x3.5
Suction cup materialNitrile rubber NBR
Material hardness [Shore A]55 (Shore A)
Nipple materialAluminum
ConnectionM3-M
SGON 7x3.5 NBR-CO-55 M3-AG

Part no.: 10.01.05.00228

Flat suction cup (oval) for long and also curved workpieces

Dimension (LxW)7x3.5
Suction cup materialNitrile rubber NBR-conductive
Material hardness [Shore A]55 (Shore A)
Nipple materialAluminum
ConnectionM3-M
SGON 7x3.5 NBR-ESD-55 M3-AG

Part no.: 10.01.05.00939

Flat suction cup (oval) for long and also curved workpieces

Dimension (LxW)7x3.5
Suction cup materialNitrile rubber NBR-ESD
Material hardness [Shore A]55 (Shore A)
Nipple materialAluminum
ConnectionM3-M
SGON 12x4 HT1-60 M5-AG

Part no.: 10.01.05.00406

Flat suction cup (oval) for long and also curved workpieces

Dimension (LxW)12x4
Suction cup materialHigh temperature material HT1
Material hardness [Shore A]60 (Shore A)
Material property non-marking
Nipple materialAluminum
ConnectionM5-M
SGON 12x4 NBR-55 M5-AG

Part no.: 10.01.05.00236

Flat suction cup (oval) for long and also curved workpieces

Dimension (LxW)12x4
Suction cup materialNitrile rubber NBR
Material hardness [Shore A]55 (Shore A)
Nipple materialAluminum
ConnectionM5-M
SGON 12x4 NBR-CO-55 M5-AG

Part no.: 10.01.05.00238

Flat suction cup (oval) for long and also curved workpieces

Dimension (LxW)12x4
Suction cup materialNitrile rubber NBR-conductive
Material hardness [Shore A]55 (Shore A)
Nipple materialAluminum
ConnectionM5-M
