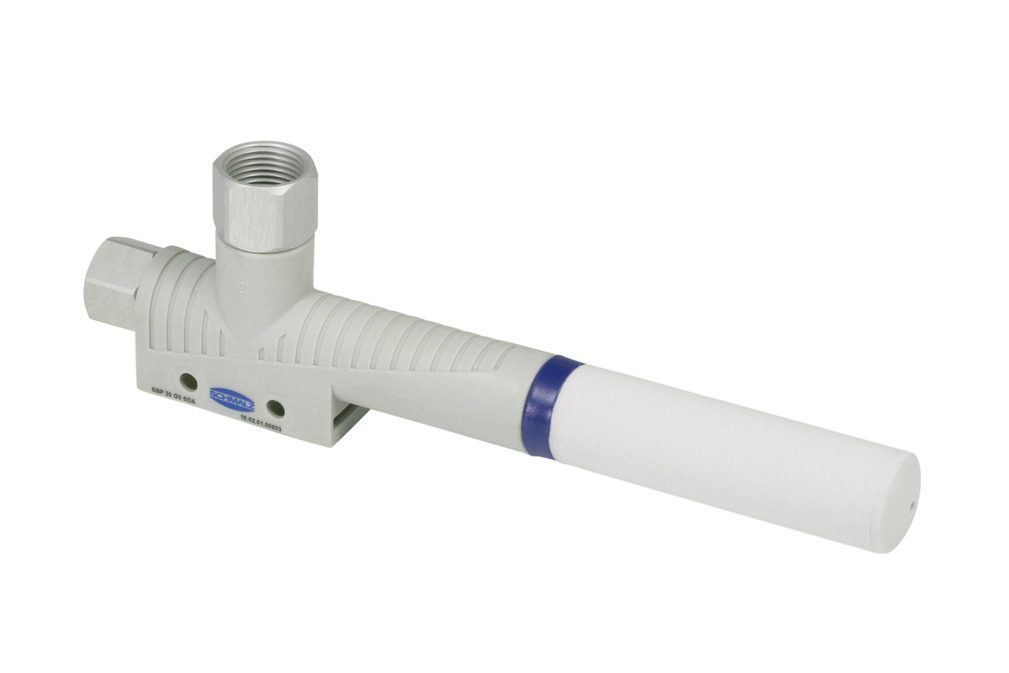

Part no.: 10.02.01.00604
Basic ejector for universal use
| Nozzle diameter | 2.5 (mm) |
| Additional function ejector | Silencer axial |
| Degree of evacuation | 85 (%) |
| Connection | G1/4"(1)-G3/8"(2) |
| Optimal operating pressure | 4.5 (bar) |
| Suction rate (max.) | 215 (l/min) |
| Air consumption suction | 311 (l/min) |
| Attribute | Value |
|---|---|
| B | 20 mm |
| d | 4.2 mm |
| D | 20 mm |
| G1 | G1/4"-F |
| G2 | G3/8"-F |
| H | 39 mm |
| H1 | 53.5 mm |
| H2 | 5.2 mm |
| H3 | 17 mm |
| L | 86.5 mm |
| L1 | 175.5 mm |
| L2 | 24.5 mm |
| L3 | 13 mm |
| L4 | 12.5 mm |
| LG1 | 9 mm |
| LG2 | 10 mm |
| SW1 | 17 mm |
| SW2 | 19 mm |
| X1 | 20 mm |
| Attribute | Value |
|---|---|
| Nozzle diameter | 2.5 mm |
| Degree of evacuation | 85 % |
| Suction rate (max.) | 12.9 m³/h |
| Suction rate (max.) | 215 l/min |
| Air consumption suction | 18.7 m³/h |
| Air consumption suction | 311 l/min |
| Sound pressure level free | 78 dB(A) |
| Sound pressure level suction | 70 dB(A) |
| Pressure range (operating pressure) [bar] | 3.0 ... 6.0 bar |
| Optimal operating pressure | 4.5 bar |
| Recommended hose internal diameter compressed air | 6 mm |
| Recommended hose internal diameter vacuum | 7 mm |
| Operating temperature | 0 ... 60 °C |
| Pressure range (operating pressure) [bar] | 43.5 ... 87.0 |
| Suction rate (max.) | 7.59 cfm |
| Air consumption suction | 10.98 cfm |
| Weight | 50 g |
| Product family | SBP |
| Thread G1 | G3/8"-M |
| Outside diameter D | 20 (mm) |
| Length L | 76 (mm) |
| Utilization design | Basic ejector SBP |
| Length L | 110 (mm) |
| Width B | 44.5 (mm) |
| Height H | 3 (mm) |
| Utilization design | Basic ejector SBP |
| Length L | 50 (mm) |
| Width B | 14 (mm) |
| Utilization design | Basic ejector SBP |
| Type | M4-IG |
| Connection | G3/8"-F |
| Shape | Long filter insert |
| Nominal flow rate | 245 (l/min) |
| Nominal flow rate | 14.7 (m³/h) |
| Filter pore size | 80 (µm) |
| Connection | G3/8"-F |
| Shape | Long filter insert |
| Nominal flow rate | 290 (l/min) |
| Nominal flow rate | 17.4 (m³/h) |
| Filter pore size | 100 (µm) |
