SPF 60 ED-65 SC050

Part no.: 10.01.01.12896

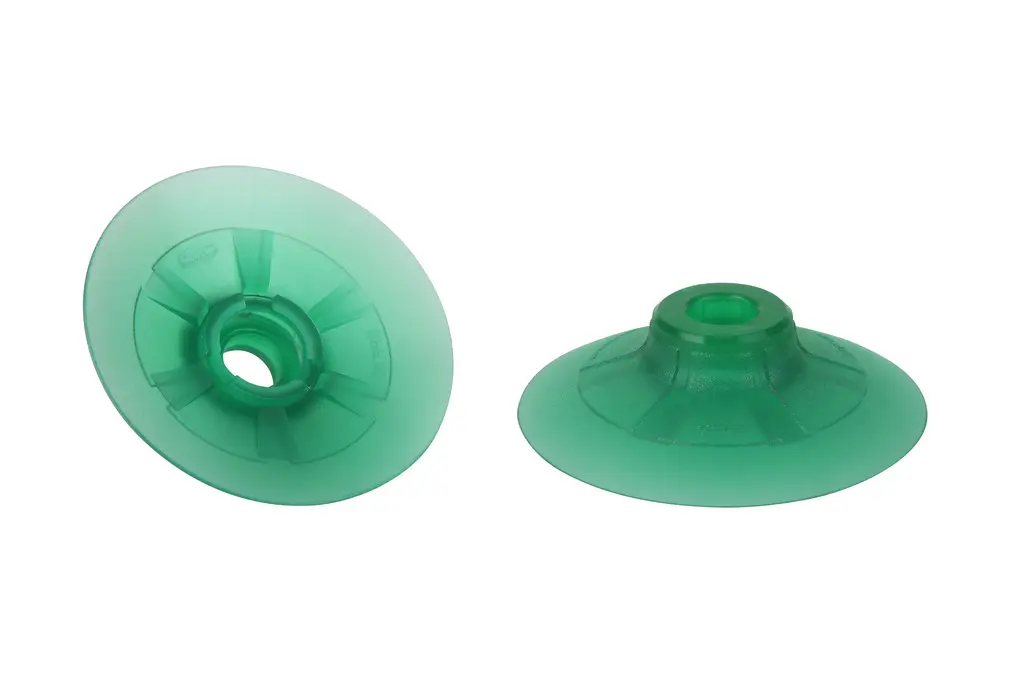

Flat suction cup (round) for dynamic handling of cardboard and rigid packaging

Size	60
Suction cup material	Elastodur ED
Material hardness [Shore A]	65 (Shore A)
Height H	18.1 (mm)

Product information

Design Data

Attribute	Value
d	10.5 mm
d1	17.5 mm
Dk	22.1 mm
Dmax(S)	65 mm
Ds	61.2 mm
H	18.1 mm
H2	7.5 mm
Z (Stroke)	5.1 mm

Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3

Technical Data

Attribute	Value
Suction force (-600mbar)	107 N
Pull-off force	135 N
Lateral force	65 N
Volume	12.67 cm³
Workpiece radius min. (convex)	70 mm
Hose inner diameter (recom.) d	6 mm
Size	60
Nipple family	SC 050
Number of folds	0
Suction cup material	Elastodur ED
Material hardness [Shore A]	65 Shore A
Weight	9 g
Product family	SPF

Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m
