SGP 35 HT1-60 N034
Part no.: 10.01.01.12811
Flat suction cup (round) for careful gripping of paper, plastic film, etc.
| Size | 35 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |

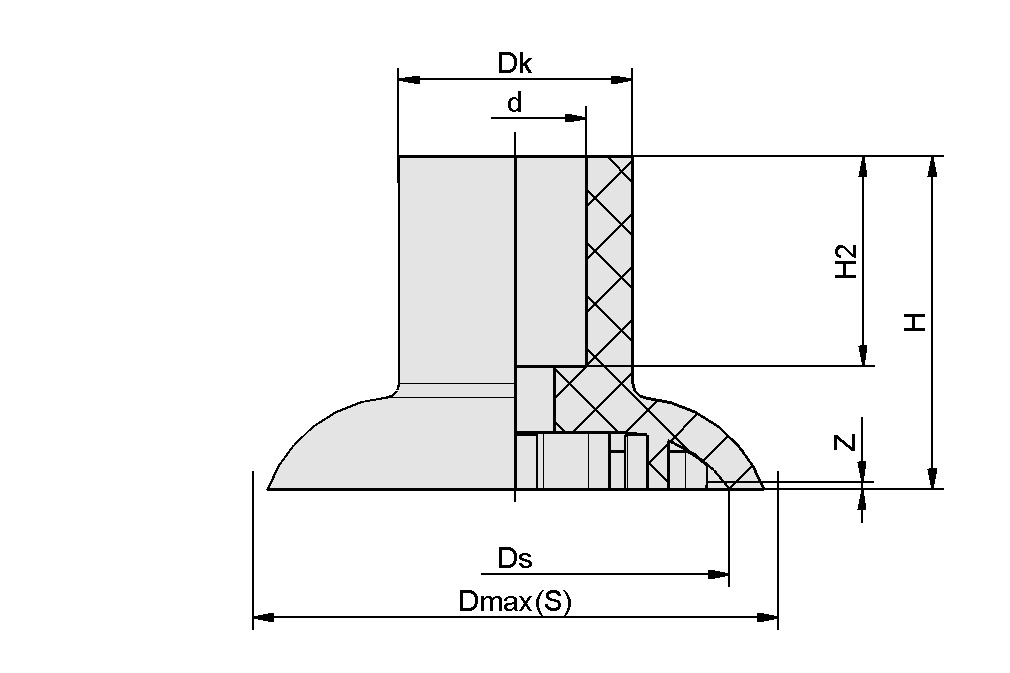

Design Data
Design Data
| Attribute | Value |
|---|---|
| d | 10 mm |
| Dk | 16.5 mm |
| Dmax(S) | 35 mm |
| Ds | 30.2 mm |
| H | 23.5 mm |
| H2 | 14.8 mm |
| Z (Stroke) | 0.5 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 31 N |
| Volume | 2.8 cm³ |
| Size | 35 |
| Nipple family | N 034 |
| Number of folds | 0 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 Shore A |
| Weight | 6.4 g |
| Product family | SGP |
