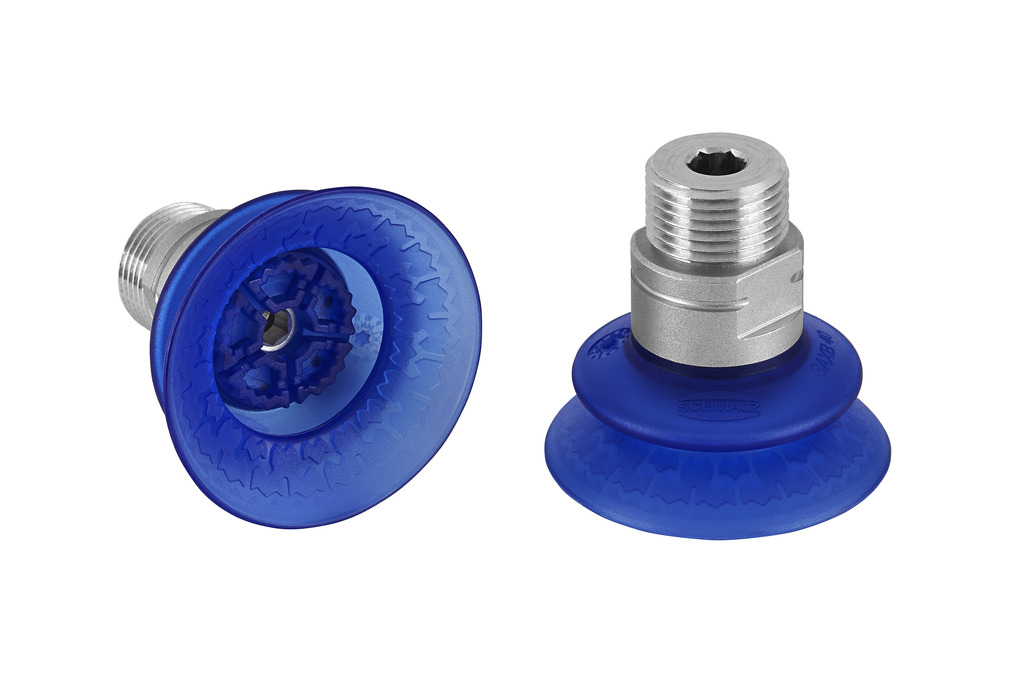

SAXB 40 ED-85 G3/8-AG
Part no.: 10.01.42.00041
High-speed bellows suction cup for adaptation to strongly curved and oiled surfaces
| Size | 40 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 85 (Shore A) |
| Nipple material | Aluminum |
| Connection | G3/8-AG |
| Number of folds | 1.5 |

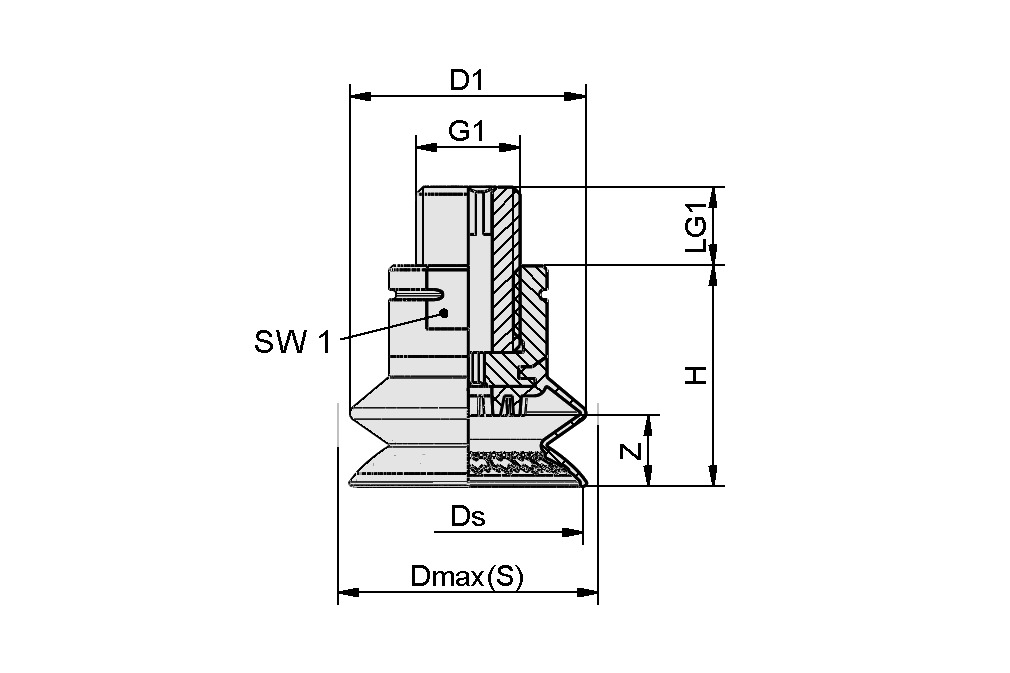

Design Data
Design Data
| Attribute | Value |
|---|---|
| Dmax(S) | 44 mm |
| Ds | 39.4 mm |
| D1 | 33.8 mm |
| G1 | G3/8"-M |
| H | 28.8 mm |
| LG1 | 10 mm |
| SW1 | 17 mm |
| Z (Stroke) | 9.8 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 42 N |
| Lateral force | 45 N |
| Lateral force oily surface | 37 N |
| Volume | 8.7 cm³ |
| Workpiece radius min. (convex) | 18 mm |
| Hose inner diameter (recom.) d | 4 mm |
| Size | 40 |
| Connection | |
| Number of folds | 1.5 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 85 Shore A |
| Weight | 17.7 g |
| Product family | SAXB |
