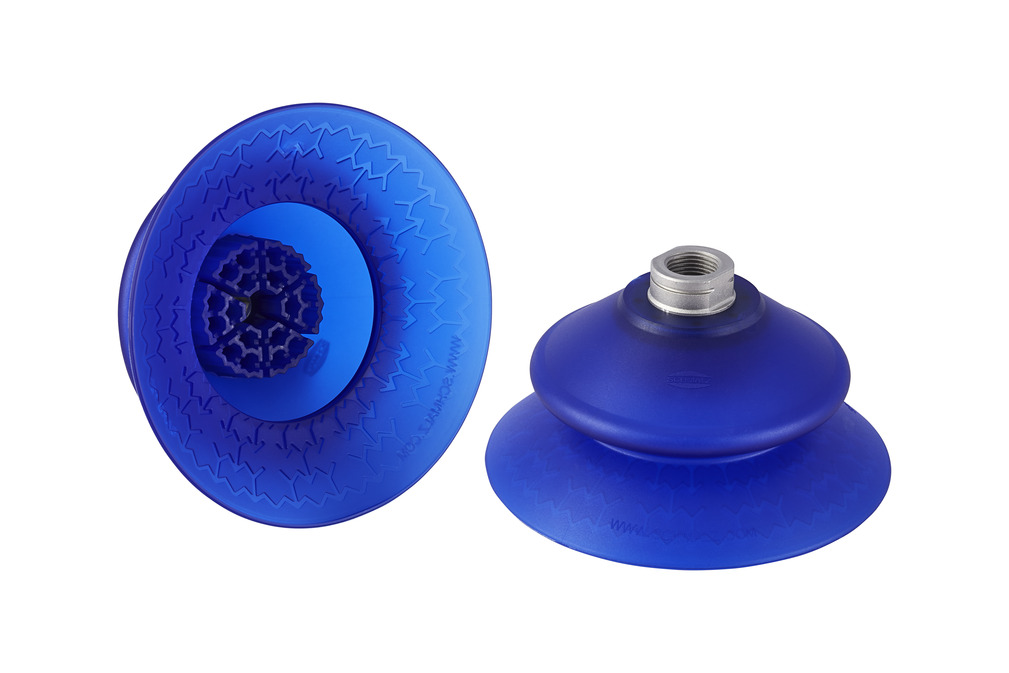

SAXB 120 ED-85 G3/8-IG
Part no.: 10.01.42.00009
High-speed bellows suction cup for adaptation to strongly curved and oiled surfaces
| Size | 120 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 85 (Shore A) |
| Nipple material | Aluminum |
| Connection | G3/8-IG |
| Number of folds | 1.5 |

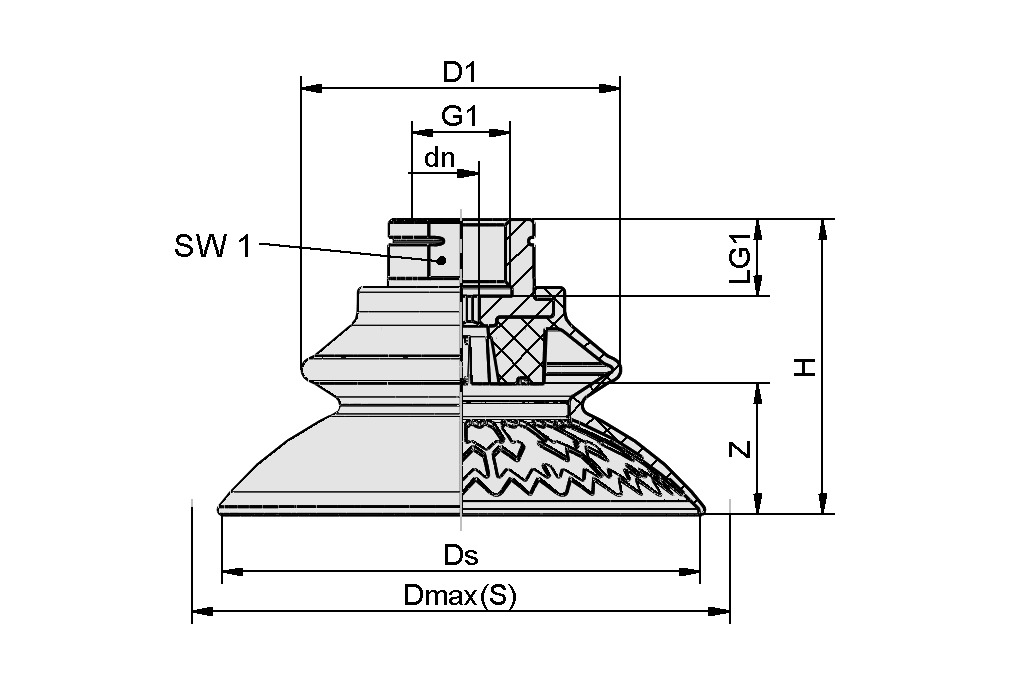

Design Data
Design Data
| Attribute | Value |
|---|---|
| Dmax(S) | 131 mm |
| Ds | 120.6 mm |
| D1 | 95 mm |
| G1 | G3/8"-F |
| H | 67.8 mm |
| LG1 | 13 mm |
| SW1 | 22 mm |
| Z (Stroke) | 32 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 275 N |
| Lateral force | 479 N |
| Lateral force oily surface | 380 N |
| Volume | 251.7 cm³ |
| Workpiece radius min. (convex) | 67.5 mm |
| Hose inner diameter (recom.) d | 8 mm |
| Size | 120 |
| Connection | G3/8"-F |
| Number of folds | 1.5 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 85 Shore A |
| Weight | 115 g |
| Product family | SAXB |
