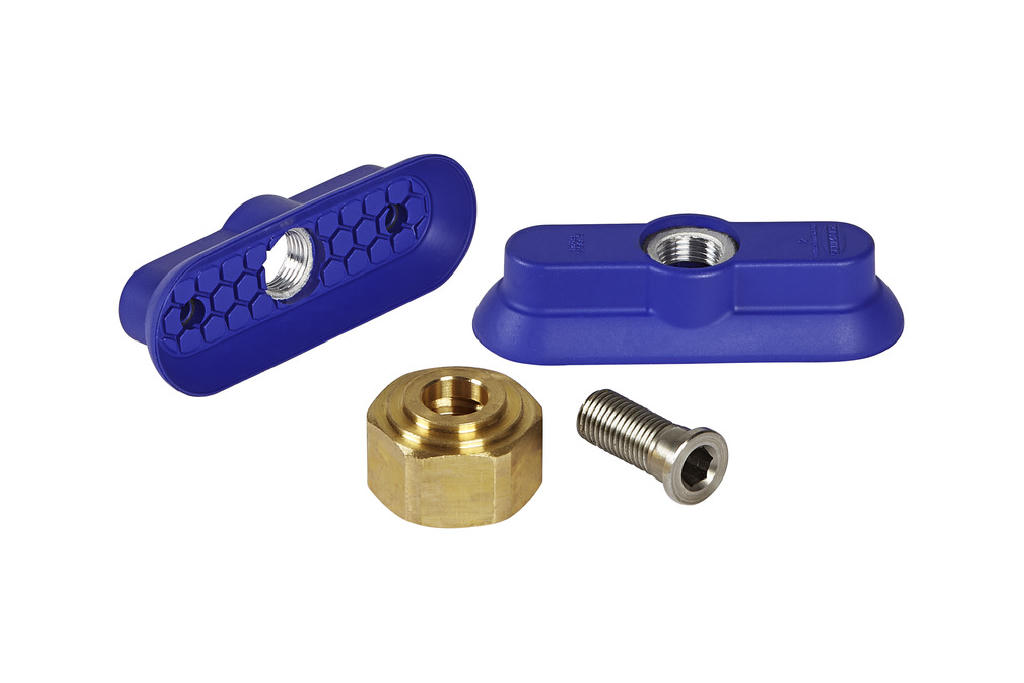

SAOG-S 60x20 NBR-60 G1/4-IG MOD
Part no.: 10.01.01.14899
Bell suction cup (oval) for very dynamic handling of smooth and oily workpieces
Industries: Sheet metal / automotive
| Dimension (LxW) | 60x20 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 60 (Shore A) |
| Connection | G1/4-IG |

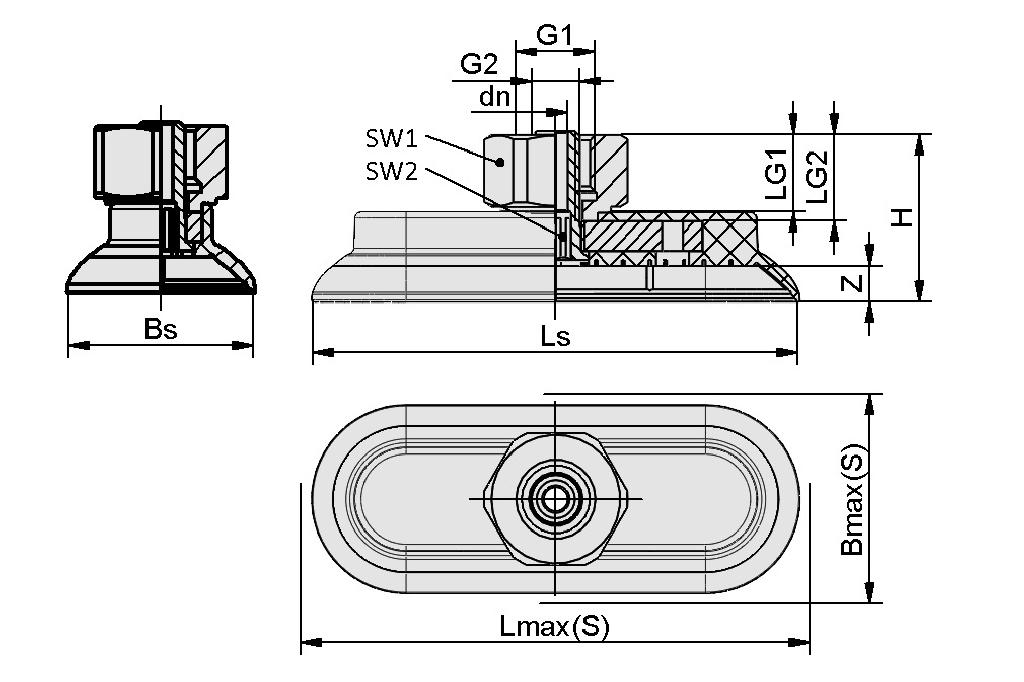

Design Data
Design Data
| Attribute | Value |
|---|---|
| Bmax(S) | 25.8 mm |
| Bs | 20.9 mm |
| dn | 4 mm |
| G1 | G1/4"-F |
| H | 27 mm |
| LG1 | 11 mm |
| Lmax.(S) | 65.8 mm |
| Ls | 60.9 mm |
| SW1 | 22 mm |
| Z (Stroke) | 5 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 56 N |
| Lateral force | 45 N |
| Lateral force oily surface | 30 N |
| Volume | 4 cm³ |
| Workpiece radius min. (convex) | 12.5 mm |
| Hose inner diameter (recom.) d | 4 mm |
| Suction cup material | Nitrile rubber NBR |
| Number of folds | 0 |
| Weight | 46.9 g |
| Product family | SAOG-S |
