SC-A 045 M10-AG L
Part no.: 10.01.06.02819

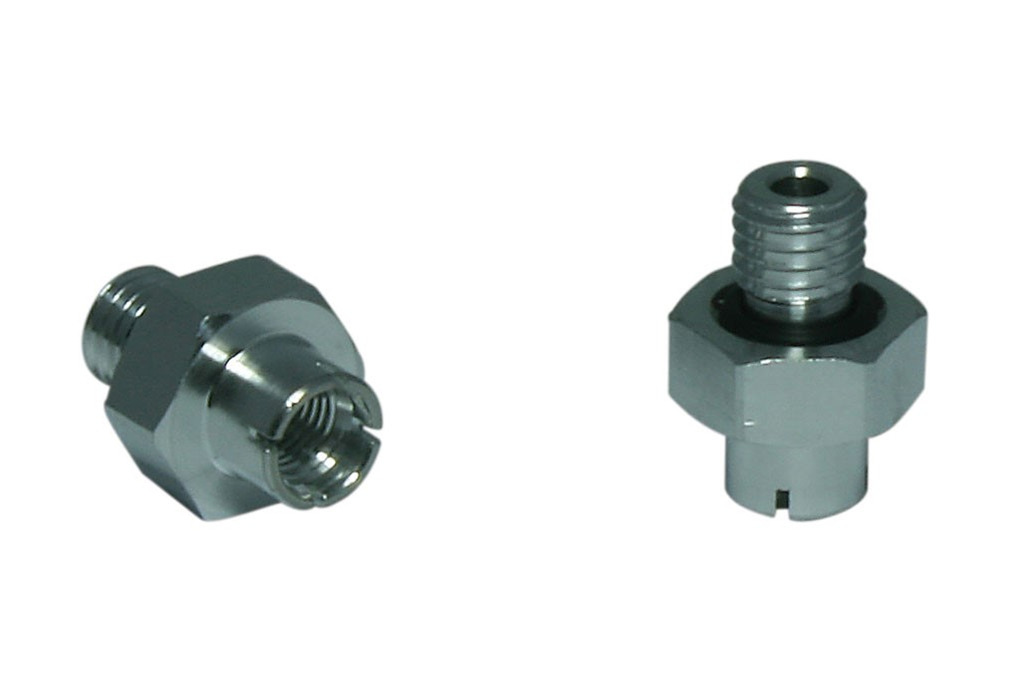

Schmalz-Connector upper part
| Connection type | 045 |
| Thread G1 | M10-M |
| Fitting length | 7.2 (mm) |
| Shape | Self Locking |
Design Data
Design Data
| Attribute | Value |
|---|---|
| dn | 4.1 mm |
| D2 | 10.5 mm |
| G1 | M10-M |
| L | 7.2 mm |
| L2 | 7.8 mm |
| LG1 | 10 mm |
| SW1 | 17 mm |
| SW2 | 4 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Connection type | 045 |
| Material | Aluminum |
| Shape | Self Locking |
| Weight | 6.1 g |
