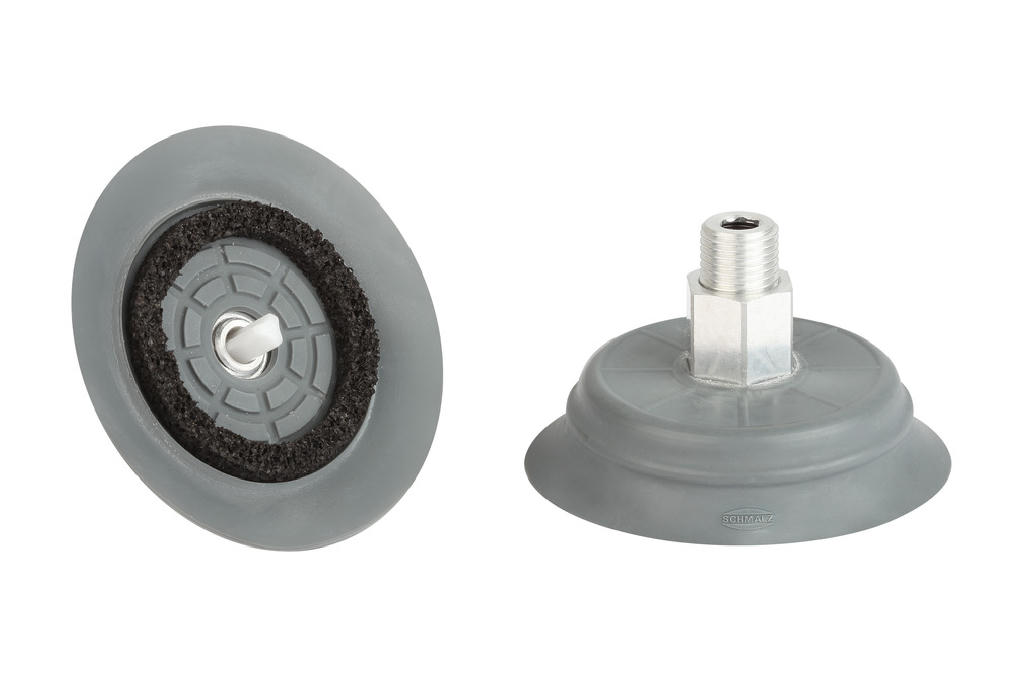

SHFN 70 NK-45 G1/4-AG E MOS-TV

Part no.: 10.01.01.12222

Flat suction cup (round) for highly dynamic handling of wood

Size	70
Suction cup material	Natural rubber NK
Material hardness [Shore A]	45 (Shore A)
Connection	G1/4-AG
Type	E

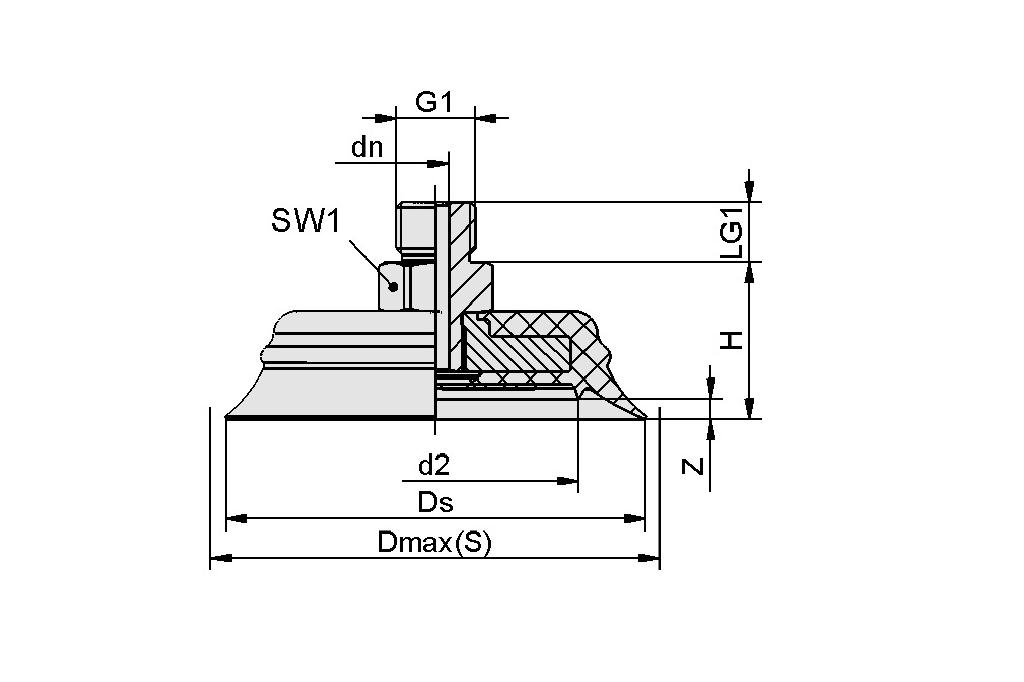

Design Data

Attribute	Value
d2	36 mm
dn	4.4 mm
Dmax(S)	74 mm
Ds	70 mm
G1	G1/4"-M
H	33.4 mm
LG1	10 mm
SW1	17 mm
Z (Stroke)	4 mm

Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3

Technical Data

Attribute	Value
Size	70
Suction cup material	Natural rubber NK
Suction force d2	100 N
Suction force (-600mbar)	200 N
Lateral force	145 N
Volume	16 cm³
Workpiece radius min. (convex)	95 mm
Hose inner diameter (recom.) d	6 mm
Number of folds	0
Weight	67 g
Product family	SHFN

Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a dry, smooth and even workpiece surface - they do not include a safety factor Pull-off force: The pull-off force of the versions made of natural rubber is reduced by about 40% Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Documentation

Spare parts

DR 46/36x5 S05 EPDM-15 KE 10.01.06.01678 Gasket made from special foam for optimal sealing of structured surfaces

Outside diameter D	46 (mm)
Internal diameter d	36 (mm)
Height H	5 (mm)
Sealing material	EPDM
Material hardness [Shore A]	15 (Shore A)
Additional function area gripper	Adhesive tape on one side
