SAF 50 HT2-65 G3/8-IG
Part no.: 10.01.01.12358
Flat suction cup (round) for very dynamic handling
| Size | 50 |
| Suction cup material | High temperature material HT2 |
| Material hardness [Shore A] | 65 (Shore A) |
| Temperature resistance | 200 (°C) |
| Nipple material | Aluminum |
| Connection | G3/8-IG |

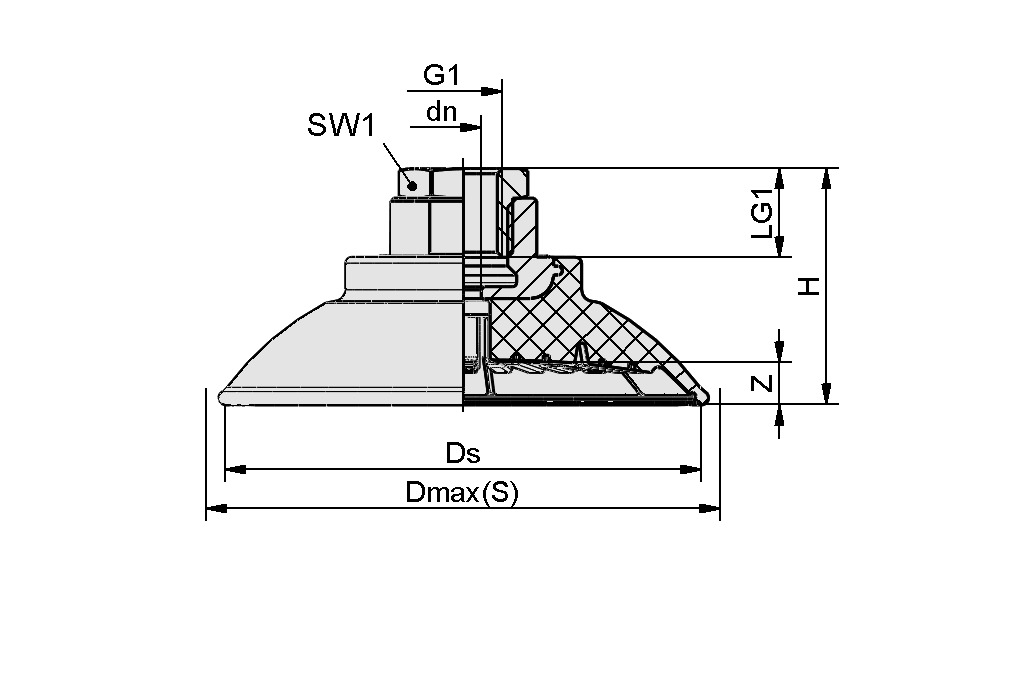

Design Data
Design Data
| Attribute | Value |
|---|---|
| dn | 6 mm |
| Ds | 50 mm |
| Dmax(S) | 56 mm |
| G1 | G3/8"-F |
| H | 28 mm |
| LG1 | 15 mm |
| SW1 | 22 mm |
| Z (Stroke) | 5 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Number of folds | 0 |
| Size | 50 |
| Suction force (-600mbar) | 100 N |
| Temperature resistance | 200 °C |
| Product family | SAF |
