SAF 30 HT2-65 G1/4-AG
Part no.: 10.01.01.12349
Flat suction cup (round) for very dynamic handling
| Size | 30 |
| Suction cup material | High temperature material HT2 |
| Material hardness [Shore A] | 65 (Shore A) |
| Temperature resistance | 200 (°C) |
| Nipple material | Aluminum |
| Connection | G1/4-AG |

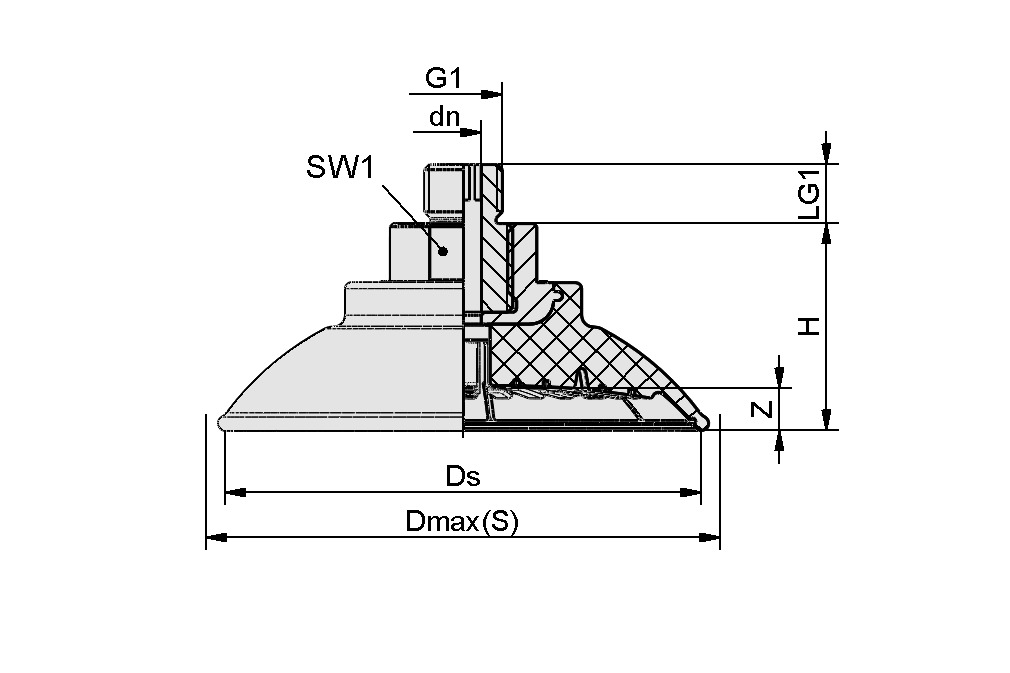

Design Data
Design Data
| Attribute | Value |
|---|---|
| dn | 4 mm |
| Ds | 31 mm |
| Dmax(S) | 34 mm |
| G1 | G1/4"-M |
| H | 20 mm |
| LG1 | 10 mm |
| SW1 | 17 mm |
| Z (Stroke) | 3 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Number of folds | 0 |
| Size | 30 |
| Suction force (-600mbar) | 38 N |
| Temperature resistance | 200 °C |
| Product family | SAF |
