PFG 120 SI-55 N010

Part no.: 10.01.01.00332

Flat suction cup (round) for smooth or slightly rough surfaces

Size	120
Suction cup material	Silicone SI
Material hardness [Shore A]	55 (Shore A)
Material characteristics	FDA-compatible

Product information

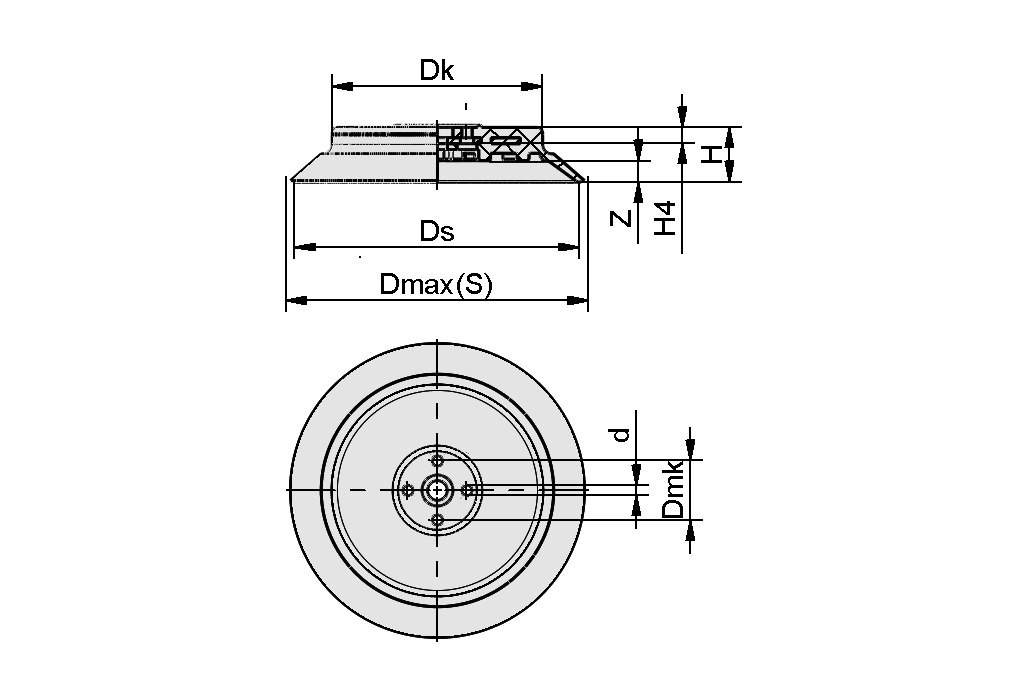

Design Data

Attribute	Value
d	7.3 mm
Dk	89.5 mm
Dmax(S)	124 mm
Ds	120 mm
H	23.5 mm
Z (Stroke)	6 mm

Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3

Technical Data

Attribute	Value
Suction force (-600mbar)	540 N
Volume	75.16 cm³
Workpiece radius min. (convex)	300 mm
Size	120
Nipple family	N 010
Suction cup material	Silicone SI
Material hardness [Shore A]	55 Shore A
Weight	220.3 g
Product family	PFG

Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m
