Part no.: 10.01.06.00113
Bellows suction cup (round) for very uneven workpieces
| Size | 25 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Nipple material | Aluminum |
| Number of folds | 3.5 |
| Attribute | Value |
|---|---|
| d2 | 10 mm |
| Dmax(S) | 26.5 mm |
| dn | 3.5 mm |
| Ds | 23 mm |
| G1 | G1/8"-M |
| H | 51 mm |
| LG1 | 7.5 mm |
| SW1 | 14 mm |
| Z (Stroke) | 22 mm |
| Attribute | Value |
|---|---|
| Pull-off force | 20 N |
| Size | 25 |
| Weight | 9.8 g |
| Nipple family | N 049 |
| Suction cup material | Silicone SI |
| Suction force (-600mbar) | 4.5 N |
| Hose inner diameter (recom.) d | 4 mm |
| Volume | 7.07 cm³ |
| Workpiece radius min. (convex) | 25 mm |
| Product family | FSGB |
| Number of folds | 3.5 |

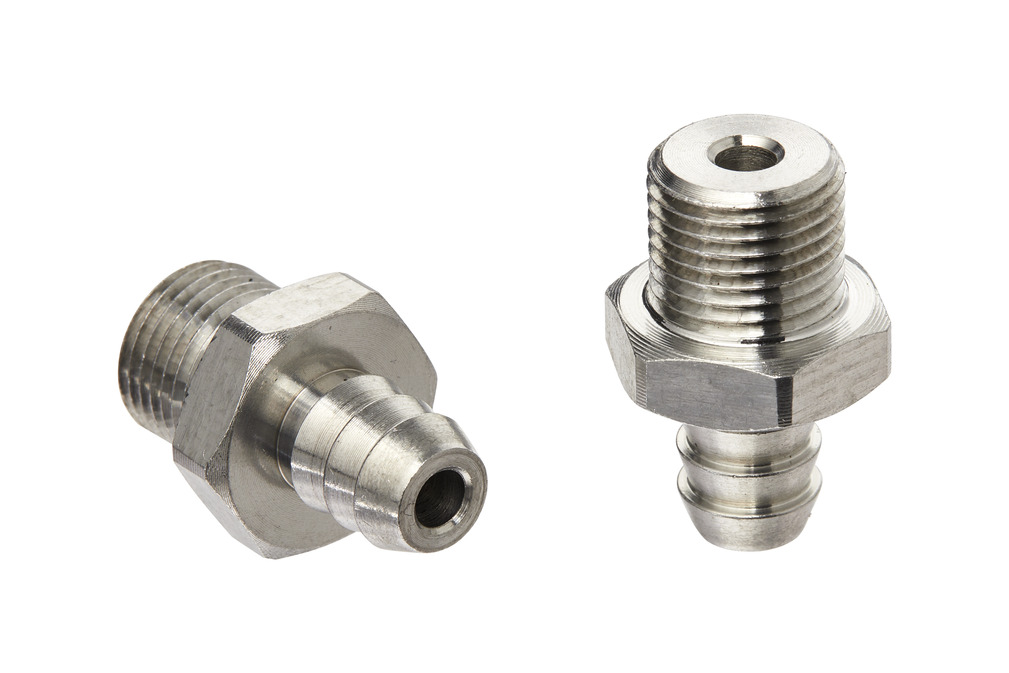

| Nipple family | N 049 |
| Thread G1 | G1/8"-M |
| Length L1 | 21 (mm) |
| Fitting length | 4 (mm) |
| Nominal diameter dn | 3 (mm) |
| Material | Aluminum |
| Size | 25 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Number of folds | 3.5 |
