Part no.: 10.03.02.00049

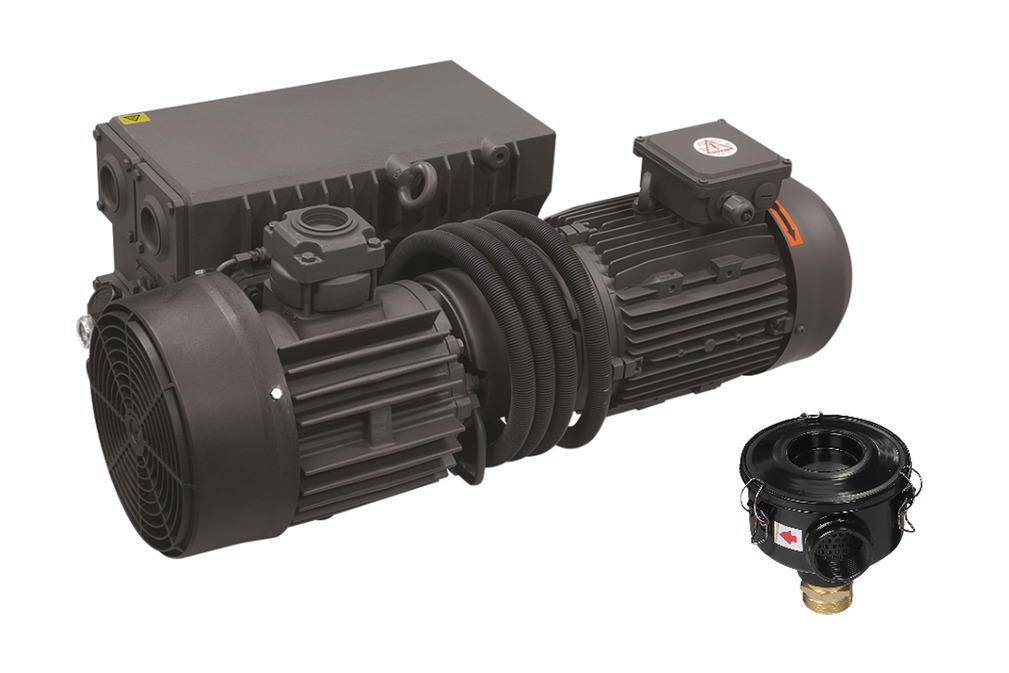

Oil-lubricated pump for maximum vacuum levels, requires little maintenance
| Current type | Three phase A.C. |
| Sound pressure level at 50 Hz | 70 (dB(A)) |
| with | Filter |
| Suction rate (50 Hz) | 165 (m³/h) |
| Rated power at 50 Hz | 4 (kW) |
| Voltage at 50 Hz | 230 / 400 V AC3 |
| Weight | 140 (kg) |
| Attribute | Value |
|---|---|
| B | 542 mm |
| B2 | 94 mm |
| G2 | G2-1/2-F |
| G3 | G2"-F |
| G5 | M10-F |
| H | 418 mm |
| H1 | 680 mm |
| H2 | 240 mm |
| L | 890 mm |
| L2 | 253 mm |
| X1 | 243 mm |
| X2 | 430 mm |
| X3 | 40 mm |
| Y1 | 305 mm |
| Attribute | Value |
|---|---|
| Max. vacuum | -980 mbar |
| Max. vacuum | -28.94 inHg |
| Suction rate (50 Hz) | 165 m³/h |
| Voltage at 50 Hz | 230 / 400 V AC3 |
| Rated power at 50 Hz | 4 kW |
| Sound pressure level at 50 Hz | 70 dB(A) |
| Weight | 140 kg |
| Protection type IP | IP 55 |
| Supply voltage | AC3 |
| Product family | EVE-OG |
| Filter pore size | 3 (µm) |
| Outside diameter D | 150 (mm) |
| Length L | 222 (mm) |
| Filter material | Paper |
| Utilization design | Dust filter STF |
| Size | 2-1/2-IG |
| Utilization design | Pump EVE-OG |
| Size | 165-255 |
| Outside diameter D | 40 (mm) |
| Measuring range [bar] | 0,0 ... 1,0 bar |
| Shape manometers | Connection at rear |
| Thread G1 | G1"-M |
| Utilization design | PKZM0 |
| Color | grey |
| Protection type IP | IP 65 |
| Measuring range [bar] | bar |
