EJEK-PL SCP 10..1510.02.02.00729Ejector blanking plate
| Length L | 26 (mm) |
| Width B | 20 (mm) |
| Height H | 6 (mm) |
| Utilization design | Compact ejectors SCP |
GP 3 SCP 10..15
Part no.: 10.02.02.00913

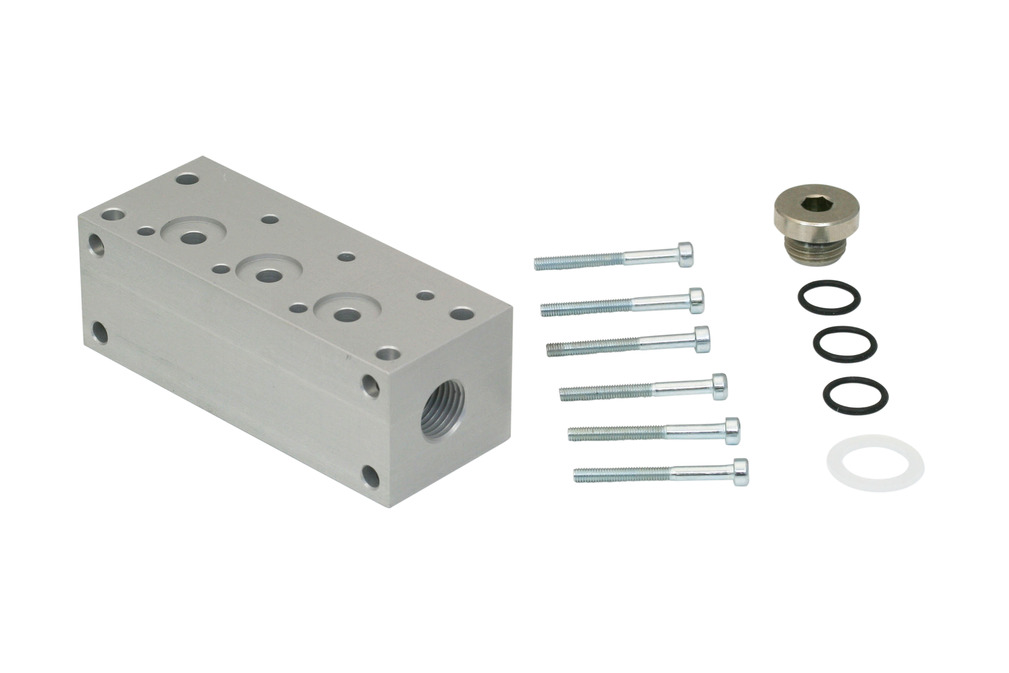

Compressed air distributor for use as a manifold and for building ejector blocks
| Number of connections | 3 |
| Length L | 85 (mm) |
| Width B | 30 (mm) |
| Height H | 34 (mm) |

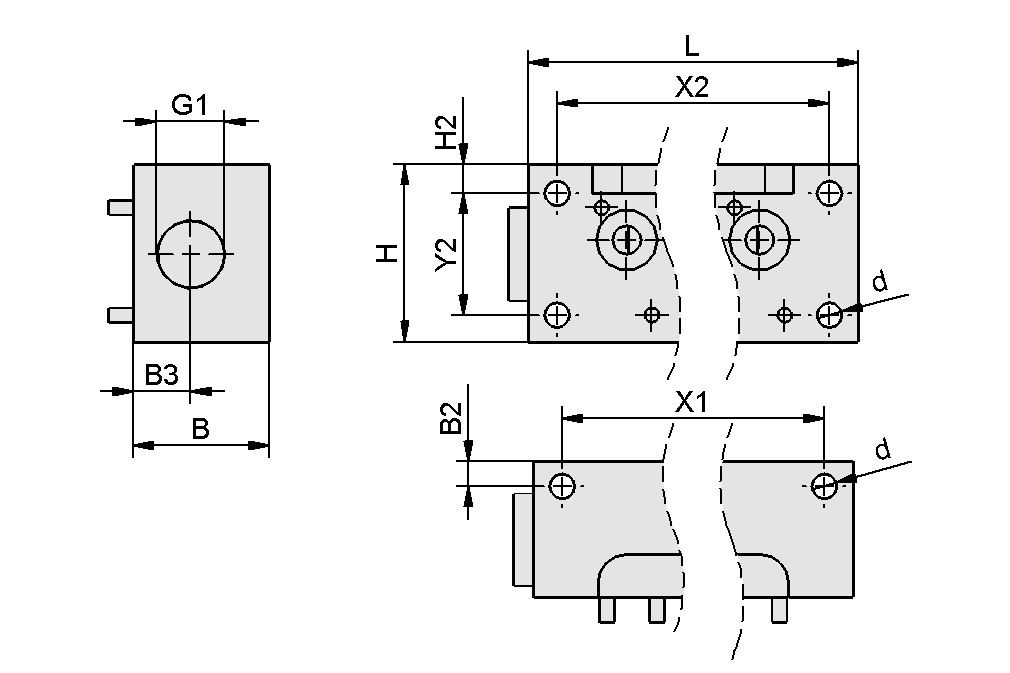

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 30 mm |
| G1 | G1/4"-F |
| H | 34 mm |
| H2 | 5 mm |
| d | 4.5 mm |
| L | 85 mm |
| Y1 | 20 mm |
| Y2 | 20 mm |
| X1 | 75 mm |
| X2 | 75 mm |
Documentation
Documentation
Spare parts
O-RING 10x1.5 NBR-70 GLB10.07.08.00129O-ring
| Material | Nitrile rubber NBR |
| Surface | Sliding coating |
| Material hardness [Shore A] | 70 (Shore A) |
| Internal diameter d | 10 (mm) |
