FSTF G1/2-AG 50 VG

Part no.: 10.01.02.01013

Spring plunger with damping, height compensation and flexible mounting

Suction cup connection	G1/4"-F
alternative suction cup connection	G1/2"-M
Vacuum connection	M20x1.5-M
alternative vacuum connection	G1/4"-F
Spring stroke Z	50 (mm)

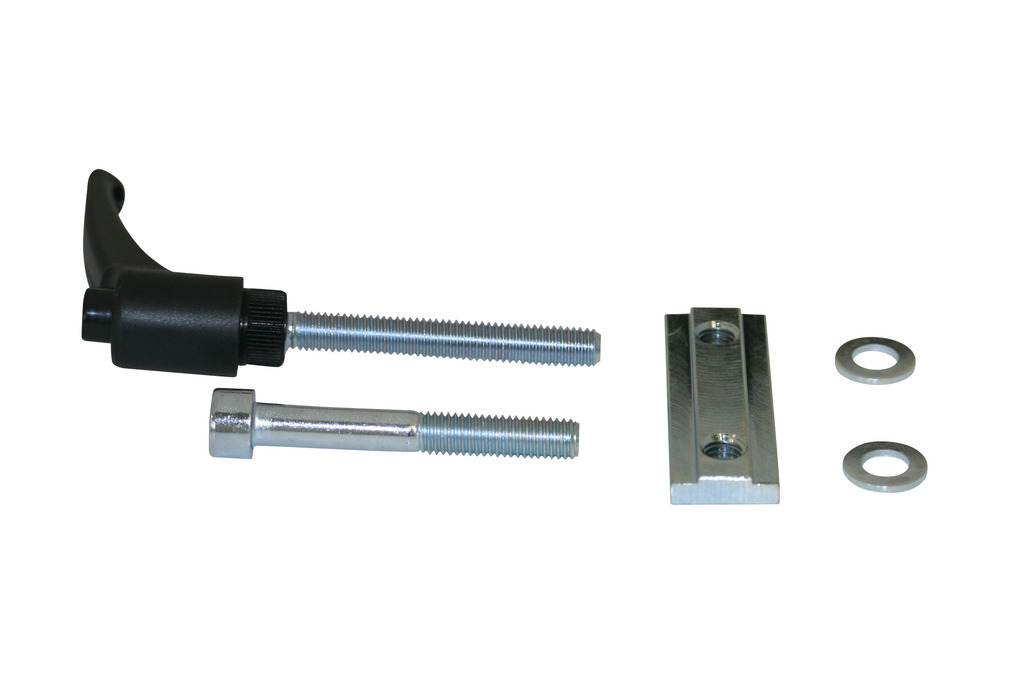

Shape mounting elements	with anti-rotation guard

Product information

Design Data

Attribute	Value
B	32.3 mm
B1	54.6 mm
G1	G1/4"-F
G2	G1/2"-M
G3	M20x1.5-M
G4	G1/4"-F
H	168 mm
H2	85 mm
H3	17.5 mm
H4	60 mm
L	60 mm
LG1	10 mm
LG2	12 mm
LG3	10 mm
LG4	10 mm
SW1	24 mm
SW2	32 mm
Z (Stroke)	50 mm

Technical Data

Attribute	Value
Spring rate	0.57 N/mm
Spring pretension	17.6 N
Spring force center	31.75 N
Vertical load	2,500 N
Horizontal load	800 N
alternative suction cup connection	G1/2"-M
alternative vacuum connection	G1/4"-F
Weight	250 g
Operating temperature	0 ... 50 °C
Product family	FSTF

Note: Spring force: Referred to 50 % of operating stroke Vertical loading: Maximum static loading Horizontal stress: The specification of the horizontal stress refers to the lower edge of the plunger with extended spring. It is a maximum static stress and it impairs the spring compression and extension in horizontal position
