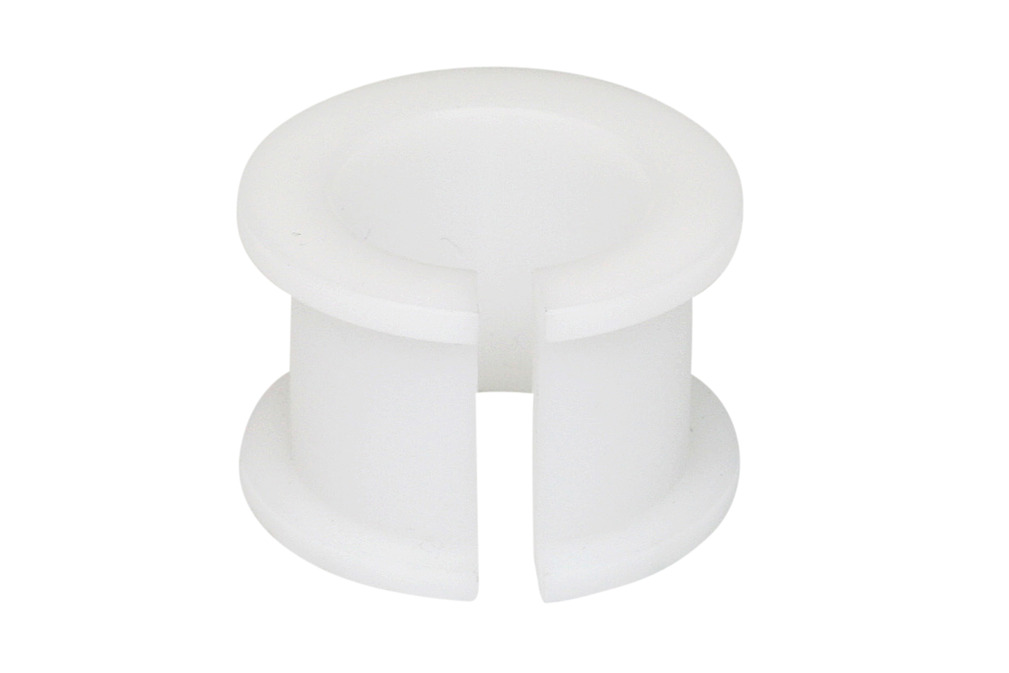

BUCHSE 32-25x21 PA10.01.03.00097Sliding-bearing sleeve with collar
| Length L | 21 (mm) |
| Outside diameter D | 32 (mm) |
| Internal diameter d | 25 (mm) |
| Material | Polyamide |
HTR-UNI 1N G2 80
Part no.: 10.01.03.00107
Universal holder for adjustable mounting of suction cups
| Suction cup connection | G1/4"-M |
| Length L1 | 80 (mm) |
| Operating temperature | 0 ... 80 °C |
| Cross-beam connection | 1 nut slot |
Design Data
Design Data
| Attribute | Value |
|---|---|
| D | 59 mm |
| G1 | G1/4"-M |
| G2 | M6-M |
| G3 | G1/4"-F |
| H | 27.5 mm |
| L | 30 mm |
| L1 | 80 mm |
| L2 | 70 mm |
| L3 | 20 mm |
| L4 | 25 mm |
| LG2 | 6.3 mm |
| W | 15 ° |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Weight | 170 g |
| Product family | HTR-UNI |
Documentation
Documentation
Accessories

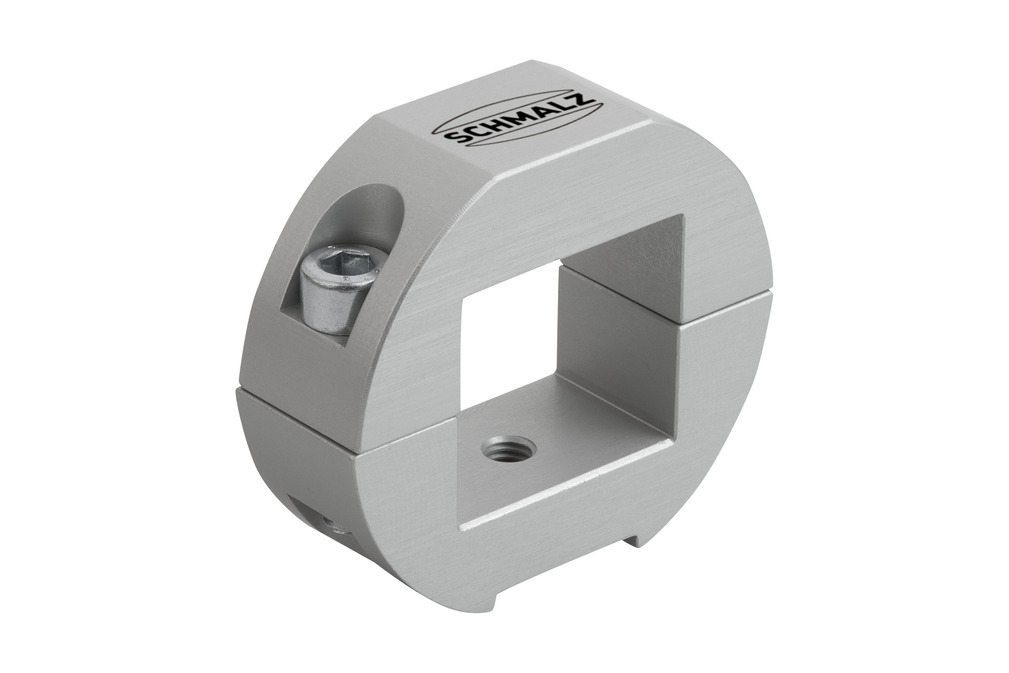

HTR-STB 30x30 UNI10.01.03.00135Cross-beam connection
| Length L | 30.5 (mm) |
| Connection 1 | Contour 30x30 |
| Shape | angled |
| Outside diameter D | 58.9 (mm) |

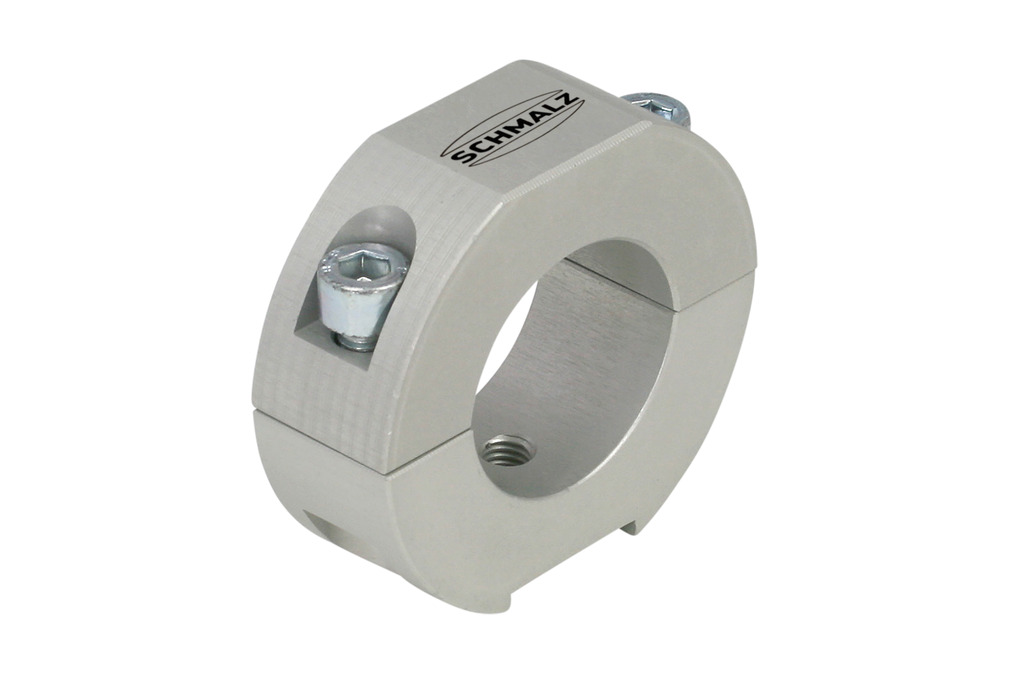

HTR-STC D32 UNI10.01.03.00108Cross-beam connection
| Connection 1 | D32 |
| Shape | angled |
| Outside diameter D | 58.9 (mm) |
| Internal diameter d | 32 (mm) |
