FXP-SW70 838 3R18 O10O10 F
Part no.: 10.01.38.00692
Vacuum area gripping system with integrated pneumatic vacuum generator and flow resistors
| Length L | 838 (mm) |
| Width B | 130 (mm) |
| Arrangement | 3R18 |

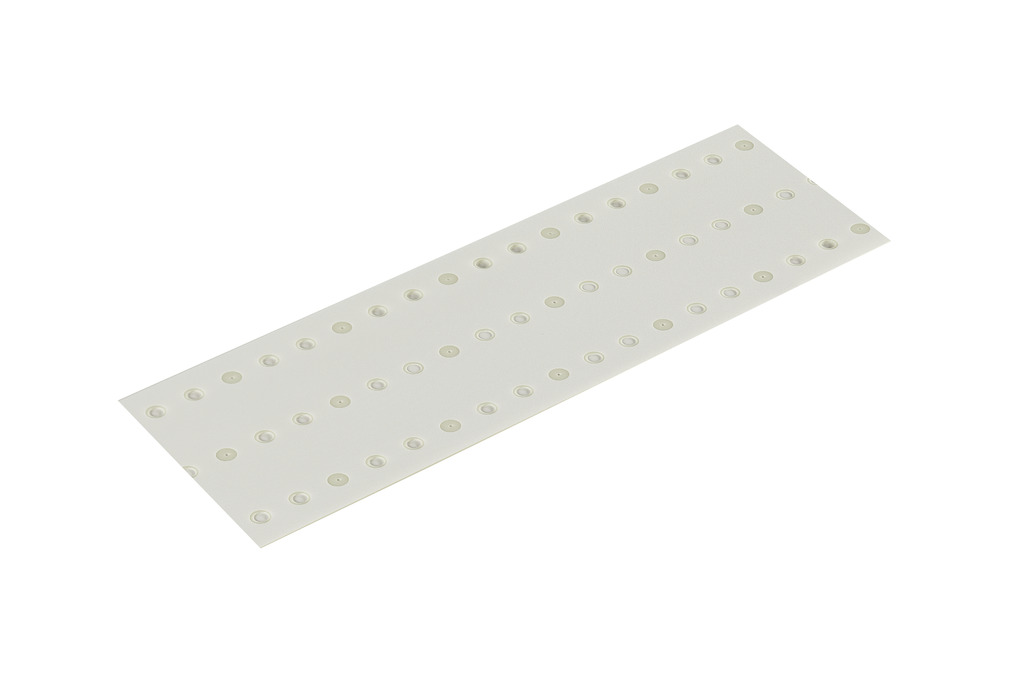

| Additional function area gripper | Filter |
| Number of suction cells | 132 |
| Design vacuum generator | Multi-stage ejector SEMP |
| Nozzle diameter | 0.7 (mm) |
| Air consumption [l/min] | 500 (l/min) |
| Weight | 3.8 (kg) |
| Product family | FXP |
Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 130 mm |
| B3 | 21.6 mm |
| H | 70 mm |
| H1 | 109 mm |
| H2 | 20 mm |
| H3 | 7.7 mm |
| H4 | 5.5 mm |
| H5 | 28 mm |
| L | 838 mm |
| L2 | 798 mm |
| L3 | 154 mm |
| Y1 | 90 mm |
| Valve type | SW |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Arrangement | 3R18 |
| Number of suction cells | 132 |
| Suction force at -250 mbar | 870 N |
| Suction rate (max.) | 1,600 l/min |
| Air consumption [l/min] | 500 l/min |

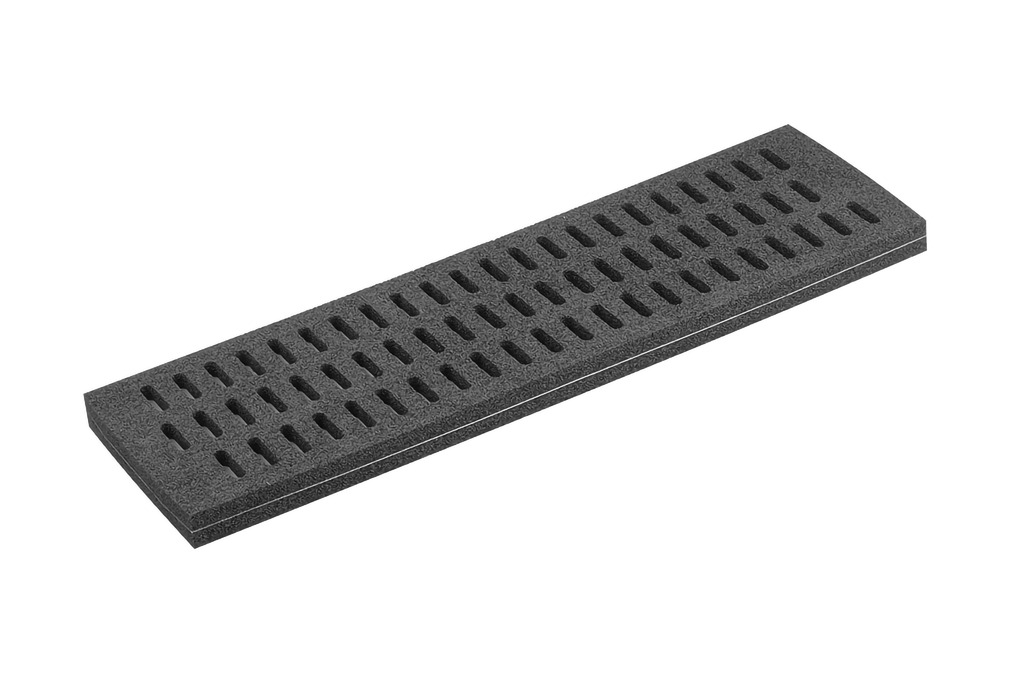

| Sealing element | Sealing Foam |
| Additional function area gripper | Filter |
| with | Filter |
| Weight | 3.8 kg |
| Product family | FXP |
