SDC2 60 PU 30/60 N044

Part no.: 10.01.06.05527

Bellows suction cup (round) structured and rough workpiece surfaces

SDC2 60 PU 30/60 N044
Size60
Suction cup materialPolyurethane PU
Material hardness [Shore A]30 Shore A
Material hardness60 Shore A
Number of folds2.5
SDC2 60 PU 30/60 N044

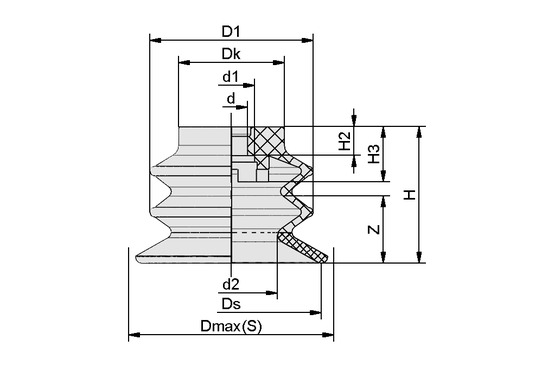

Attribute Value
d2 27.50 mm
D1 51 mm
Dk 33 mm
Dmax(S) 62 mm
Ds 56.60 mm
H 42.20 mm
H3 17.30 mm
d 10.50 mm
d1 14 mm
H2 8 mm
Z (Stroke) 18.50 mm
Attribute Value
Size 60
Suction cup material Polyurethane PU
Material hardness [Shore A] 30 Shore A
Material hardness 60 Shore A
Number of folds 2.50
Suction force 35.60 N
Pull-off force 75 N
Volume 34 cm³
Curve radius (min) (convex) 25 mm
Temperature resistance 55 °C


Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Ordering information: SDC2 60 PU 30/60 N044
