FMP-i-SVK 1234 3R54 SPB2-40P G60

Part no.: 10.01.38.07415

Intelligent area gripping system for external vacuum generator, with ball check valves

New
Length L1,234 mm
Length L11,238 mm
Width B130 mm
Arrangement3R54
construction shape fittingsStraight
External diameter D60 mm
Add. function1x Contr.-val. vacuum/blow off
Max. air consumption blow off800 l/min
Construction shape vacuum switchNormally open
Weight7.5 kg
Product familyFMP
FMP-i-SVK 1234 3R54 SPB2-40P G60

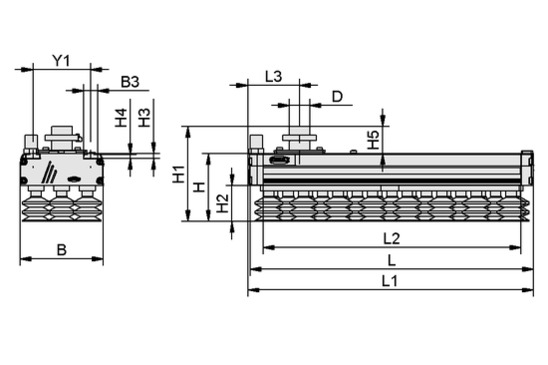

Attribute Value
B 130 mm
B3 21.60 mm
D 60 mm
H 106 mm
H1 152 mm
H2 56 mm
H3 7.70 mm
H4 5.50 mm
H5 46 mm
L 1234 mm
L1 1238 mm
L2 1194 mm
L3 80.90 mm
Y1 90 mm
Valve type SVK


Note: Vacuum hose with internal diameter equal to dimension D required. See Technical Data -> Shape
Attribute Value
Arrangement 3R54
Number of suction cells 66
Suction force at -250 mbar 720 N
Add. function 1x Contr.-val. vacuum/blow off
Weight 7.50 kg
Sealing element Suction Cups
Evacuation rate for pu = -0,25 bar 900 l/min
Product family FMP


For compressed air with 5.5 bar input pressure At -0.25 bar and with the gripper fully covered by a workpiece typical for the application (wooden board with structured surface) The external vacuum generator used must supply at least the specified suction flow (at the vacuum connection piece of the FMP) at -0.25 bar but max. 135 % of the specified suction flow
