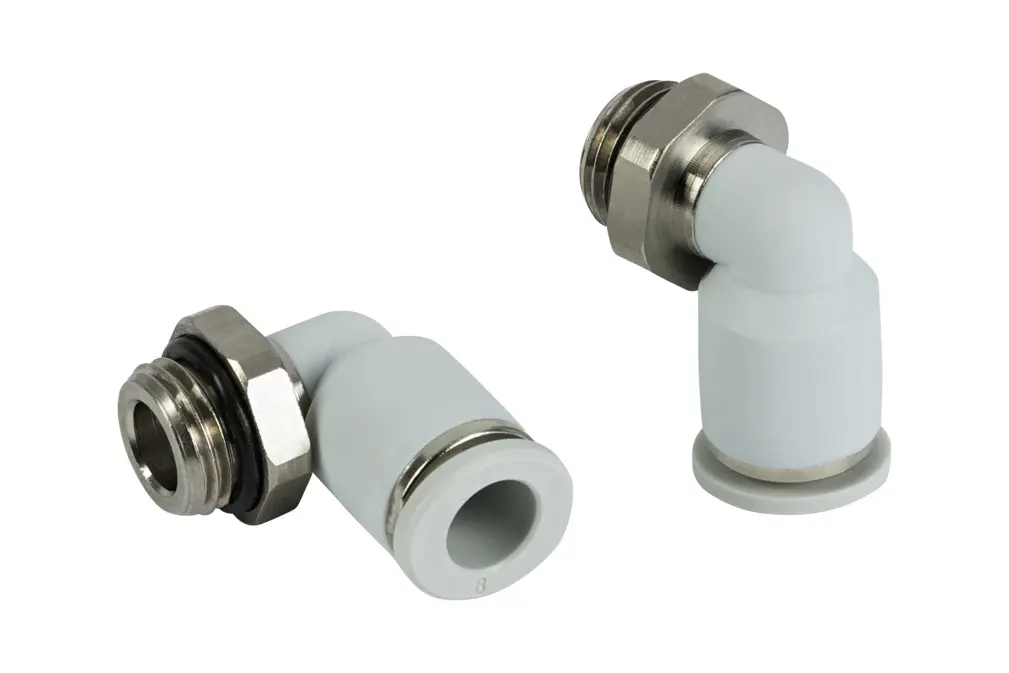

STV-W G1/4-AG 8
Part no.: 10.08.03.00233
Push-in Fitting, swivelling elbow
| Thread G1 | G1/4"-M |
| Outer hose diameter | 8 (mm) |
| Material | Plastics |
| Operating temperature | 0 ... 60 °C |
| Length L | 22.6 (mm) |

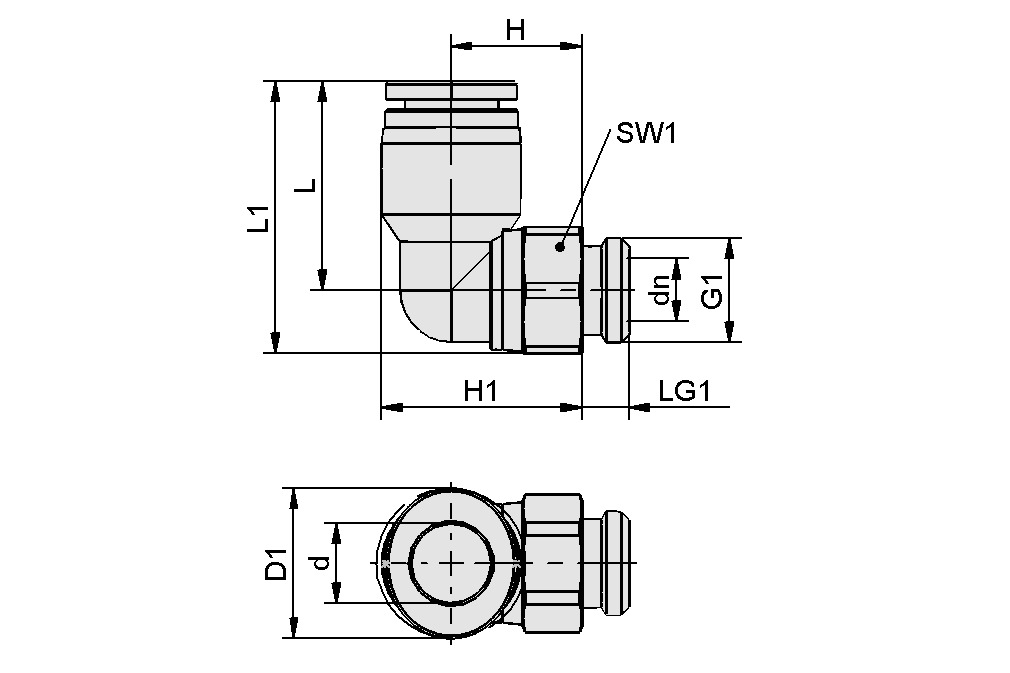

Design Data
Design Data
| Attribute | Value |
|---|---|
| d | 8 mm |
| G1 | G1/4"-M |
| dn | 6 mm |
| D1 | 16 mm |
| H | 11.5 mm |
| H1 | 19.5 mm |
| L | 22.6 mm |
| L1 | 30.7 mm |
| LG1 | 6 mm |
| SW1 | 16 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Design hose type | Hose D = 8 d = 6 |
| Design hose type | 8-6 |
| Material | Plastics |
| Pressure range (operating pressure) [bar] | 0.95 ... 10.00 bar |
| Operating temperature | 0 ... 60 °C |
| Weight | 23.1 g |
| Product family | STV |
