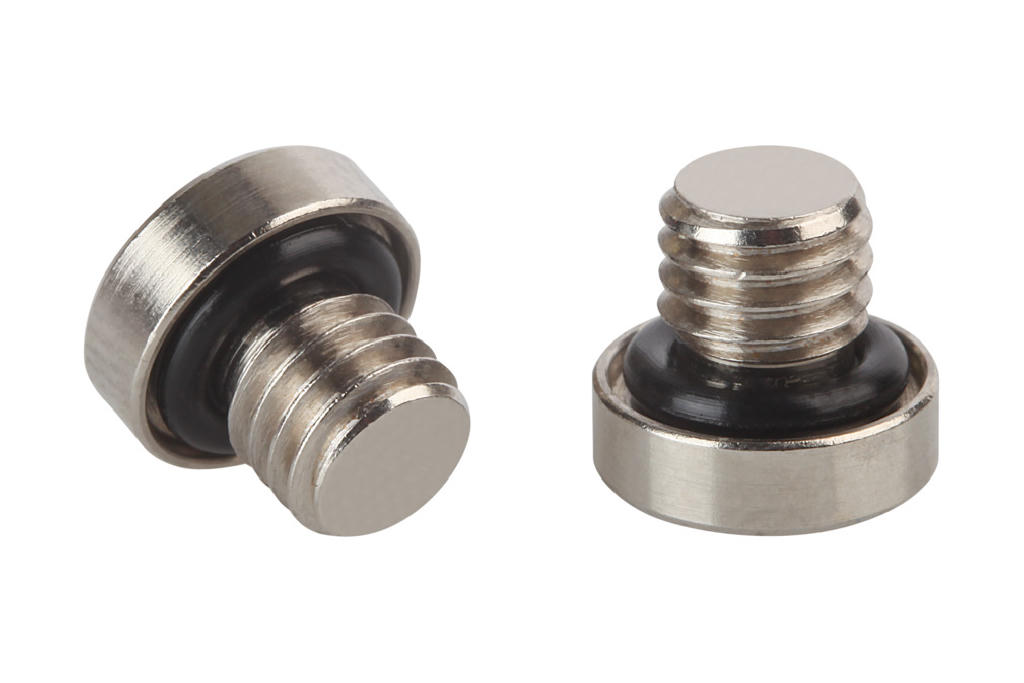

VRS-SB M5-AG ISKT O-Ring
Part no.: 10.08.06.00064
Sealing screw with collar
| Thread G1 | M5-M |
| Material | Brass |
| Surface | nickel plated |

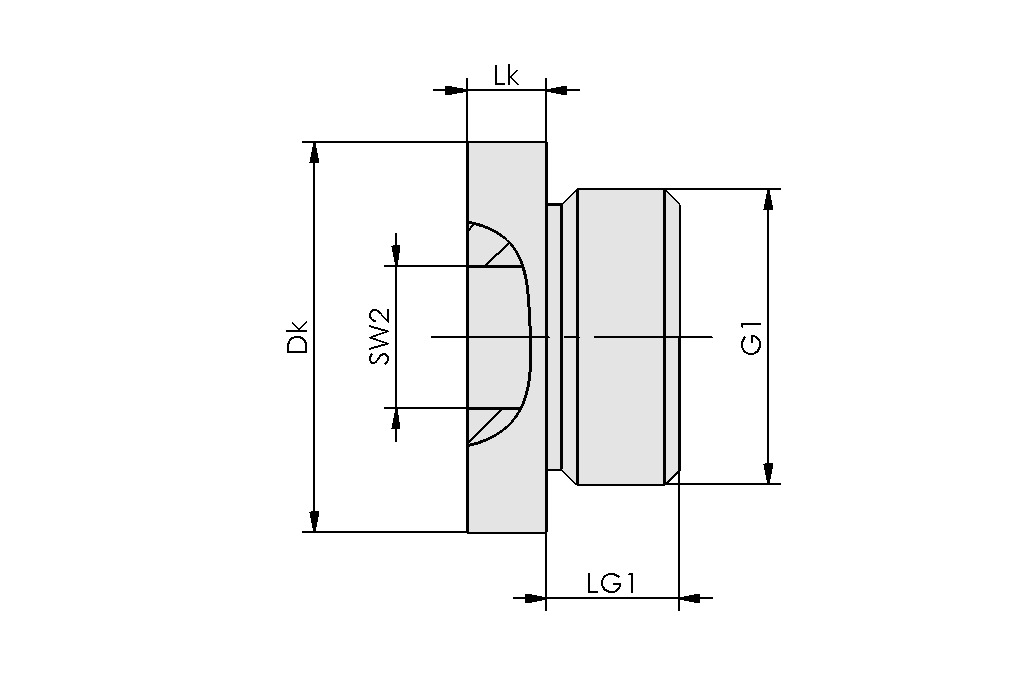

Design Data
Design Data
| Attribute | Value |
|---|---|
| Dk | 7.9 mm |
| G1 | M5-M |
| Lk | 2.5 mm |
| LG1 | 5 mm |
| SW2 | 2.5 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Material | Brass |
| Weight | 1.1 g |
