RED-NIP G1-AG G3/4-AG MS V
Part no.: 10.08.05.00145

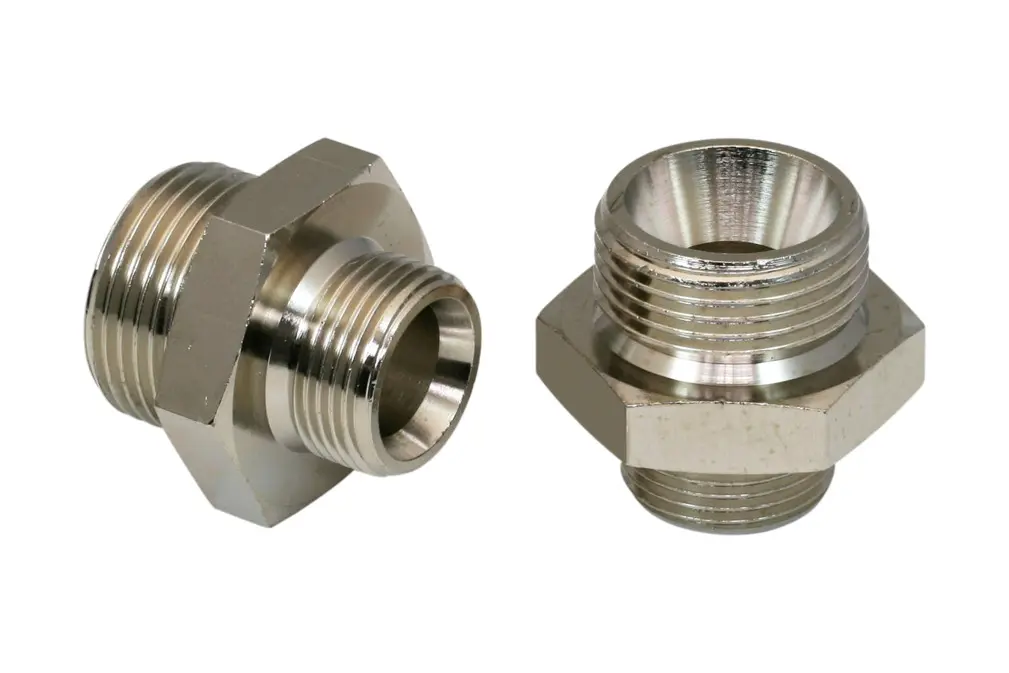

Reduction nipple with hexagon
| Thread G1 | G1"-M |
| Thread G2 | G3/4"-M |
| Material | Brass |
| Surface | nickel plated |
| Length L | 10 (mm) |
| Nominal diameter dn | 17 (mm) |

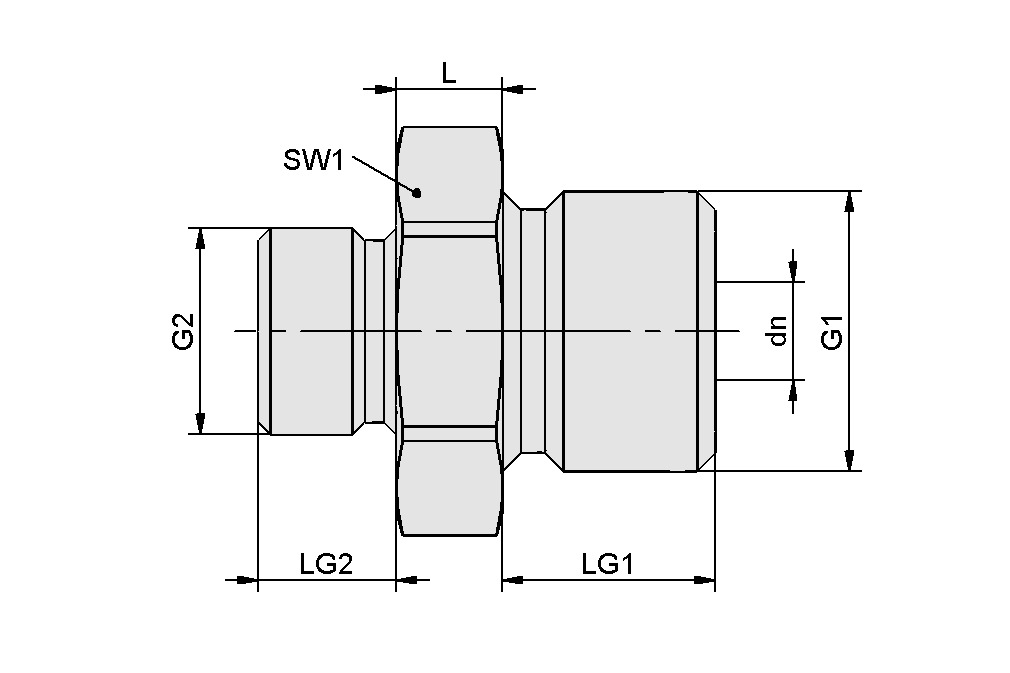

Design Data
Design Data
| Attribute | Value |
|---|---|
| dn | 17 mm |
| G1 | G1"-M |
| G2 | G3/4"-M |
| L | 10 mm |
| LG1 | 16 mm |
| LG2 | 14 mm |
| SW1 | 41 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Material | Brass |
| Weight | 193 g |
