RED-NIP G1/8-AG M5-AG MS V
Part no.: 10.08.05.00138

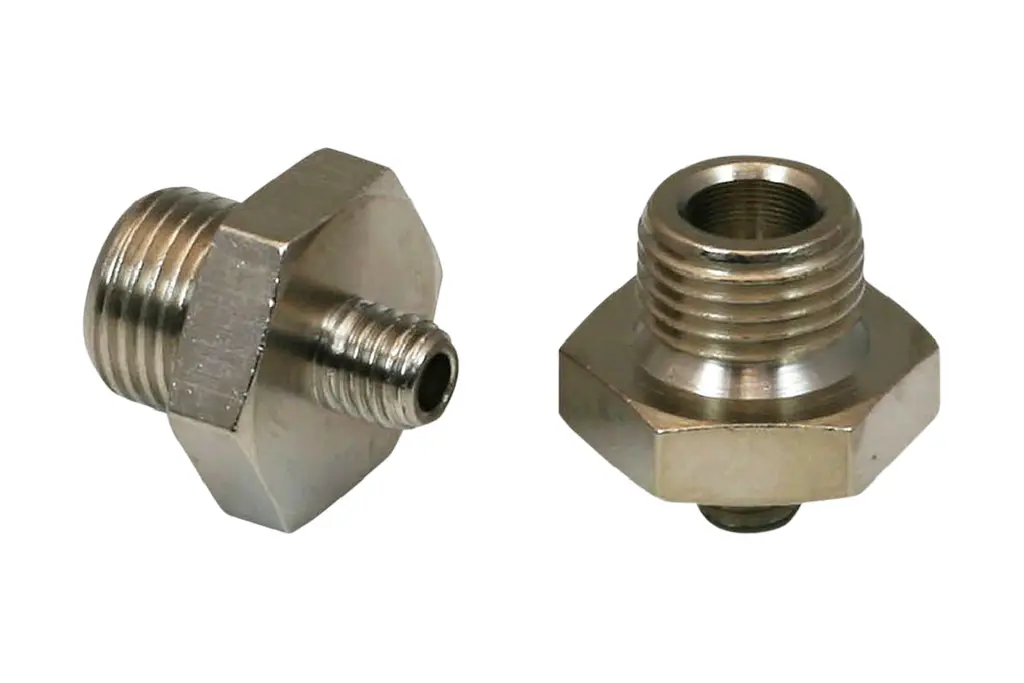

Reduction nipple with hexagon
Industries: Universal
| Thread G1 | G1/8"-M |
| Thread G2 | M5-M |
| Material | Brass |
| Surface | nickel plated |
| Length L | 4 (mm) |
| Nominal diameter dn | 2.5 (mm) |

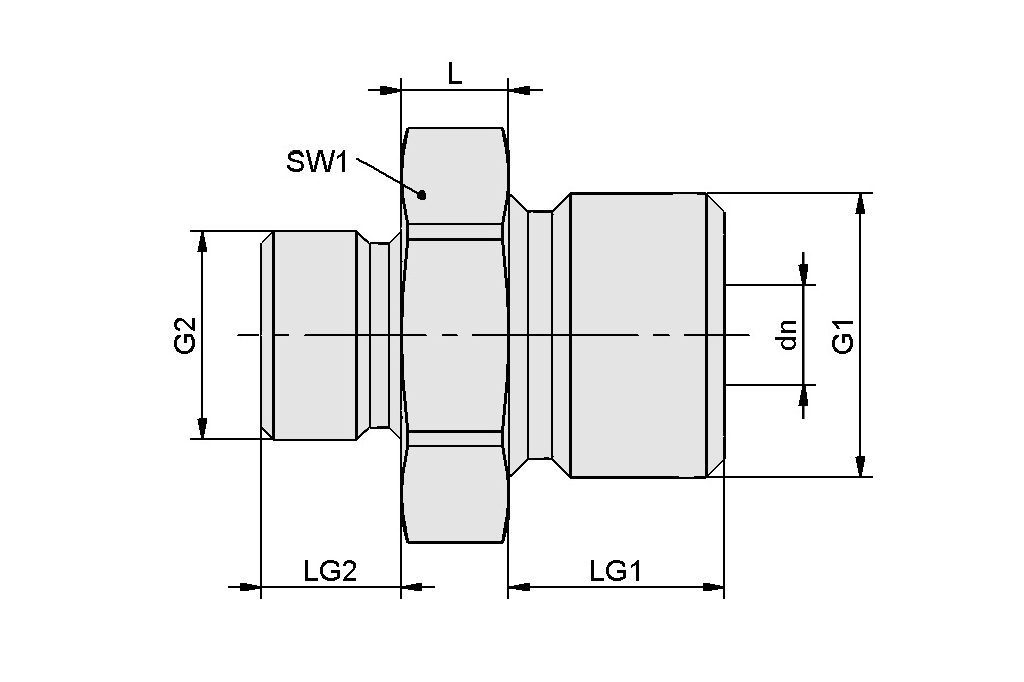

Design Data
Design Data
| Attribute | Value |
|---|---|
| dn | 2.5 mm |
| G1 | G1/8"-M |
| G2 | M5-M |
| L | 4 mm |
| LG1 | 6.5 mm |
| LG2 | 4.5 mm |
| SW1 | 14 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Material | Brass |
| Weight | 9 g |
