DOP-NIP-S G1/4-AGx5
Part no.: 10.08.05.00133

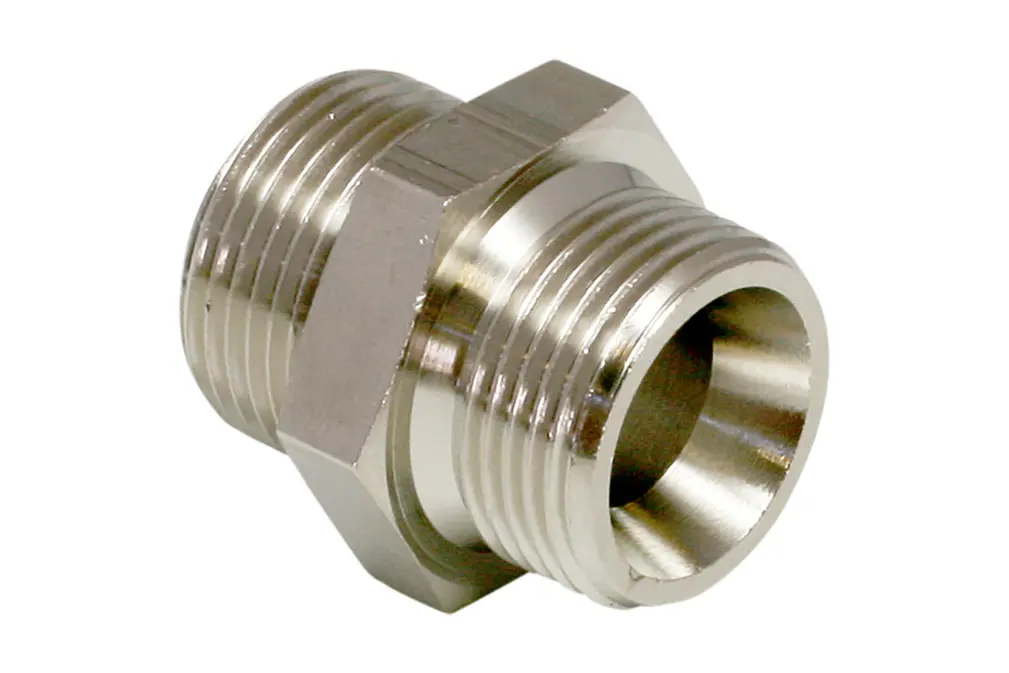

Double nipple with wrench flats
| Thread G1 | G1/4"-M |
| Material | Brass |
| Surface | nickel plated |
| Length L | 5 (mm) |
| Nominal diameter dn | 7.6 (mm) |

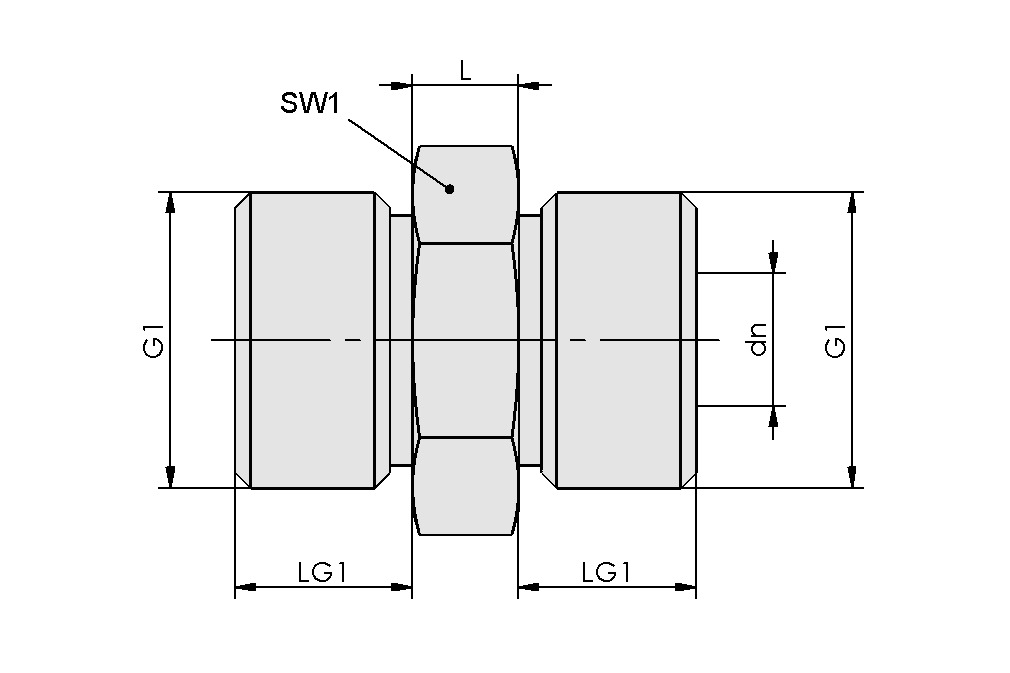

Design Data
Design Data
| Attribute | Value |
|---|---|
| dn | 7.6 mm |
| G1 | G1/4"-M |
| L | 5 mm |
| LG1 | 10 mm |
| SW1 | 17 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Material | Brass |
| Weight | 20 g |
