MUF-S G3/4-IG 28 SW32 MS-VN
Part no.: 10.08.05.00129

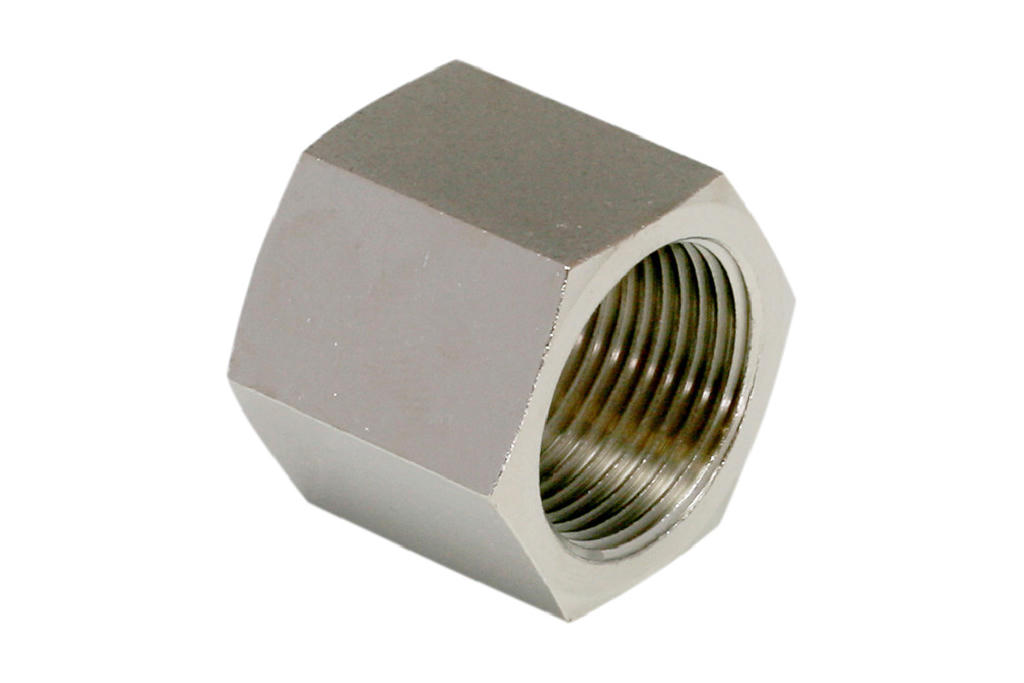

Sleeve with hexagon
| Thread G1 | G3/4"-F |
| Material | Brass |
| Surface | nickel plated |
| Length L | 28 (mm) |

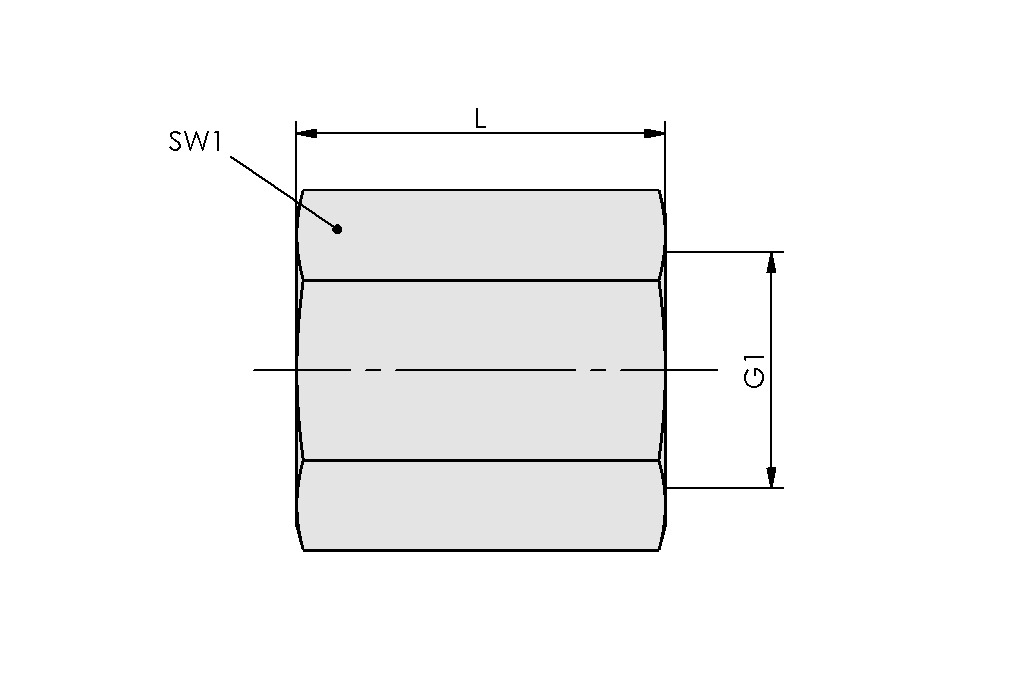

Design Data
Design Data
| Attribute | Value |
|---|---|
| G1 | G3/4"-F |
| L | 28 mm |
| SW1 | 32 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Material | Brass |
| Weight | 80 g |
